Product Description

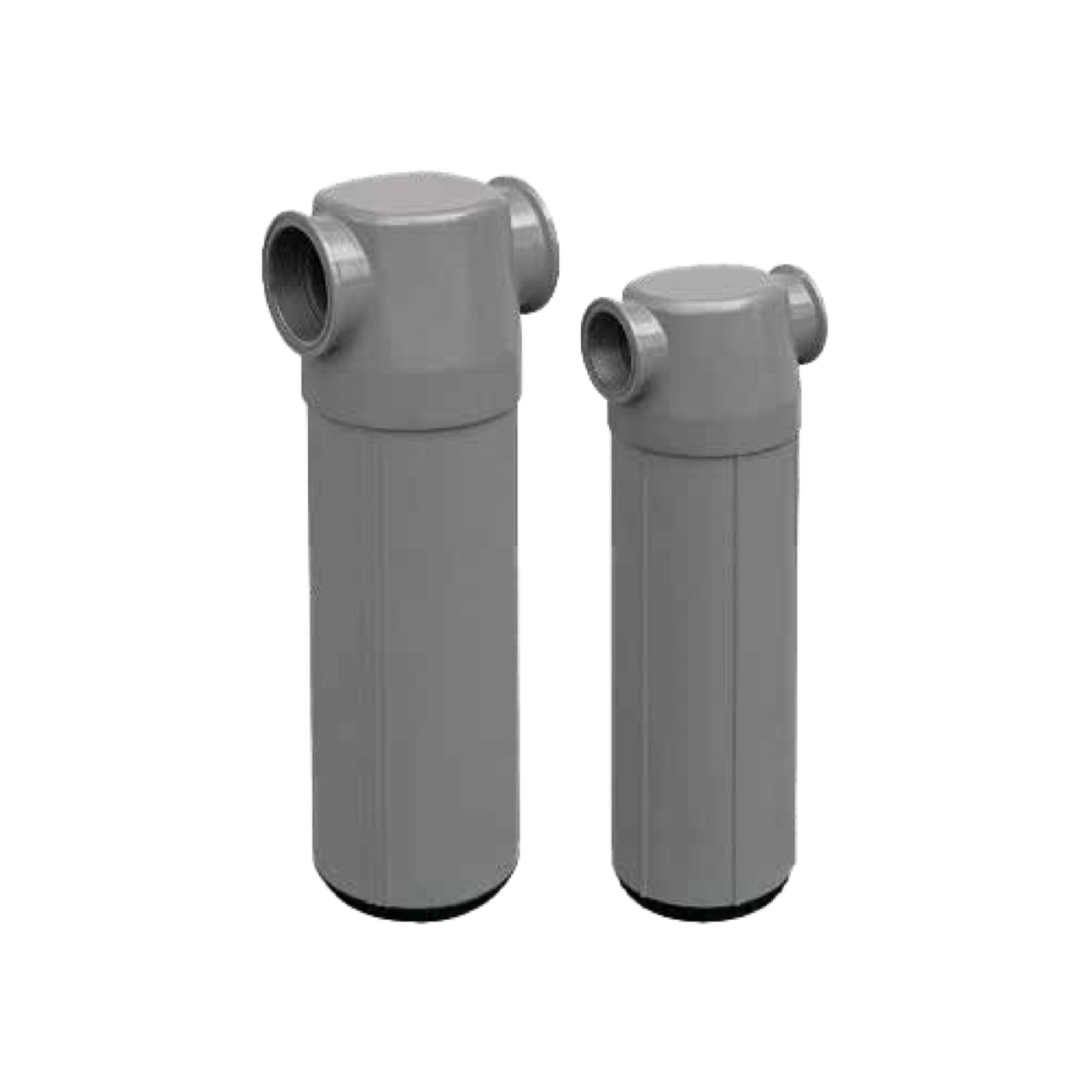

Mikropor water separators have been designed for the removal of bulk liquid water and particulate from compressed air ad gases. Unique centrifugal action removes contaminants at low-pressure drop for maximum energy savings. Mikropor water separators are available from 1/4" - 3" pipe sizes and for flows up to 1,300 scfm.
Note: While high efficient, condensate separators will not remove 100% of the oil from the air stream additional coalescing and particulate filters downstream maybe required to remove fine traces of oil, water, and particles.
Note: Automatic drain valves are fitted as standard. All separator bodies are coated with electrostatic power point finish both inside and out.
Product Videos
Custom Field
Connection Size (NPT) 2"
Flow Rate (scfm) 700
Housing Dimension A (inch) 6.3
Housing Dimension B (inch) 19
Housing Dimension C (inch) 17.4
Housing Dimension D (inch) 22
