Product Description

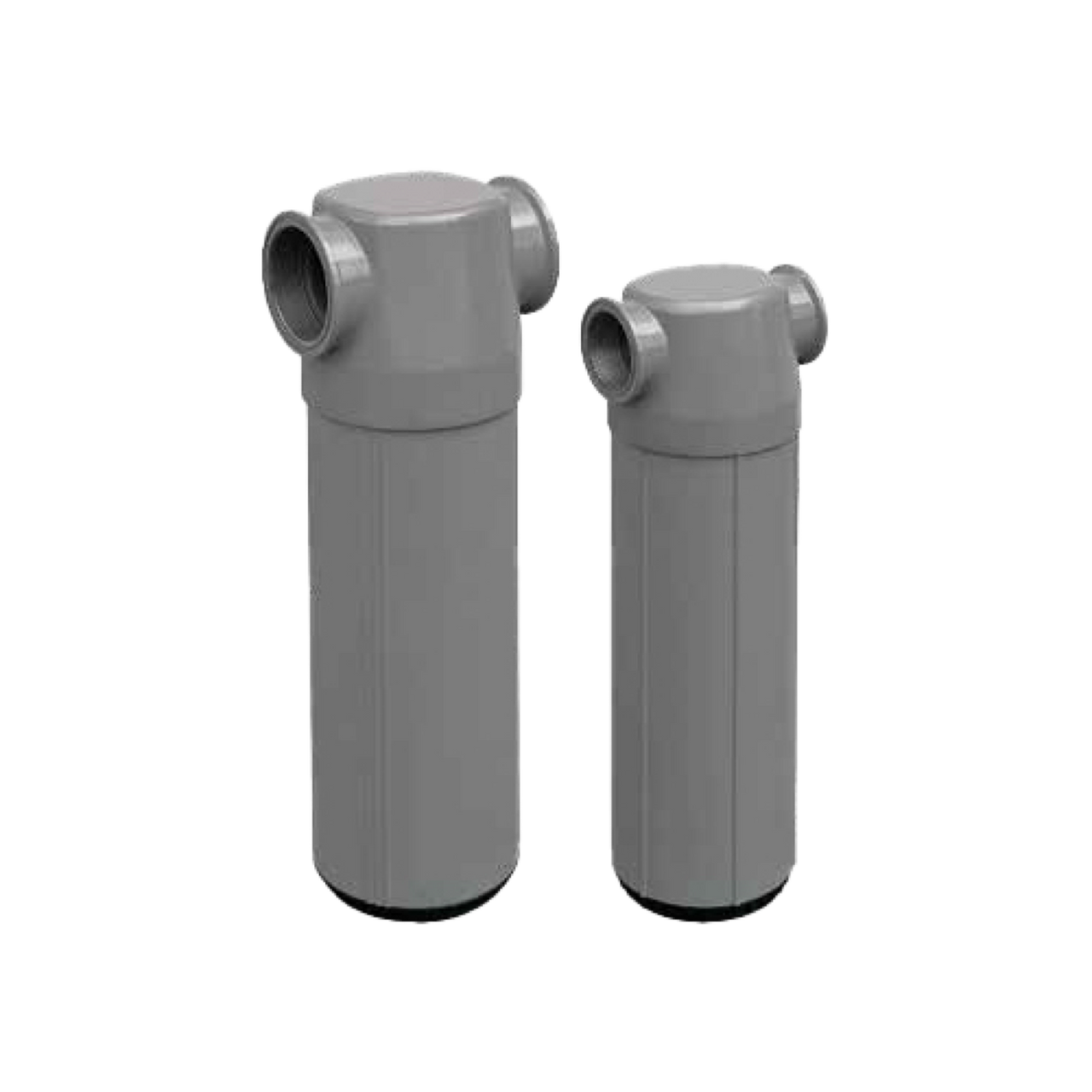

The Mikropor GWS-US-120 is a 120 scfm oil-water separator from the GWS-US Series, designed to remove bulk liquid water and particulate from compressed air and gases. Its centrifugal action removes contaminants at low pressure drop for energy savings. The GWS-US Series is available in 1/4" to 3" pipe sizes and for flows up to 1,300 scfm.
Details
- Brand: Mikropor
- Model / part number: GWS-US-120
- Series: GWS-US
- Flow rating: 120 scfm
- Drain: Automatic drain valve fitted as standard
- Finish: Separator body coated inside and out with an electrostatic powder finish
- Condition: New
- Weight: 15 lbs
- Ships from: McAllen, Texas
- Technical support available by phone from ProParts compressor technicians
Note: While highly efficient, condensate separators will not remove 100% of the oil from the air stream. Additional coalescing and particulate filters downstream may be required to remove fine traces of oil, water and particles.
Part number cross-reference
GWS-US-120 (also searched as GWSUS120).
Product Videos
Custom Field
Connection Size (NPT) 3/4"
Flow Rate (scfm) 120
Housing Dimension A (inch) 4.8
Housing Dimension B (inch) 12
Housing Dimension C (inch) 10.9
Housing Dimension D (inch) 11.2
Product Line Mikropor GWS Water Separator
Capacity (FAD) 120 scfm
Air Connection 3/4" NPT
Dimensions (A x B x C x D) 4.8 x 12 x 10.9 x 11.2 in
Type Centrifugal Water Separator
Max Working Pressure 230 psi
Max Working Temperature 176°F
Typical Pressure Loss 0.7 psi
