ELGi EG15PMSM 20 HP 125 PSI Variable Speed Air Compressor

Product Description

• Lifetime Warranty on AirEnd
  • High efficiency, slow speed, heavy duty air end
• 48 hour “Uptime” Assurance Plan
• High Efficiency TEFC motor with Class F insulation, 1785 RPM
• Direct coupled drive group, flexible jaw coupling
• Lowest Oil Carryover in the Industry
  • 3 stage air/oil separation system with less than 1 PPM
• 2-piece, oversized, air cooled oil cooler and after cooler assembly designed for high ambient applications.
  • Coolers mounted in insulated compartment providing excellent access for cleaning
• Twin cooling fans for maximum cooling capacity and efficiency
• “State of the Art” microprocessor controller
• UL/cUL compliant control panel with premium electrical components. Phase monitor included
• Full acoustical enclosure completed with powder coated panels & hinged doors providing easy access to maintenance items.
• 2-stage heavy duty inlet air filter complete with pre-filter mat for extended life.
  • Air taken from outside the package ensuring cool air source
• Superior stainless-steel control line tubing
• Rigid piping with high quality flanged connections for leak free operation
• Moisture separator with automatic drain, factory mounted
• Full complement of safety features
• Factory fill with “Airlube UT” premium PAO/POE synthetic lubricant designed for 8,000-hour life
• 5-year package warranty (including parts and labor) with Lifetime Warranty on air end

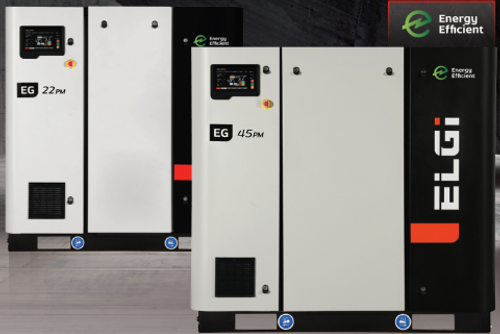

EG Series 15 to 60hp Permanent Magnet

• Permanent Magnet Motors VFD for Main motor control
• ELGi TORQ PM IE5+ efficiency permanent magnet synchronous motor
• Oil injected, air cooled
• Gear Driven AirEnd (15hp & 20hp)
• Direct Driven AirEnd (25hp to 60hp)
• Very Low 1 ppm oil carryover
• Neuron 4 HMI Controlled
• Electronically controlled intelligent thermal valve system (Neuron 4 + Servo motor + 3 way valve + Sensors)
• 5 year Package warranty
• Life time AirEnd warranty
