Product Description

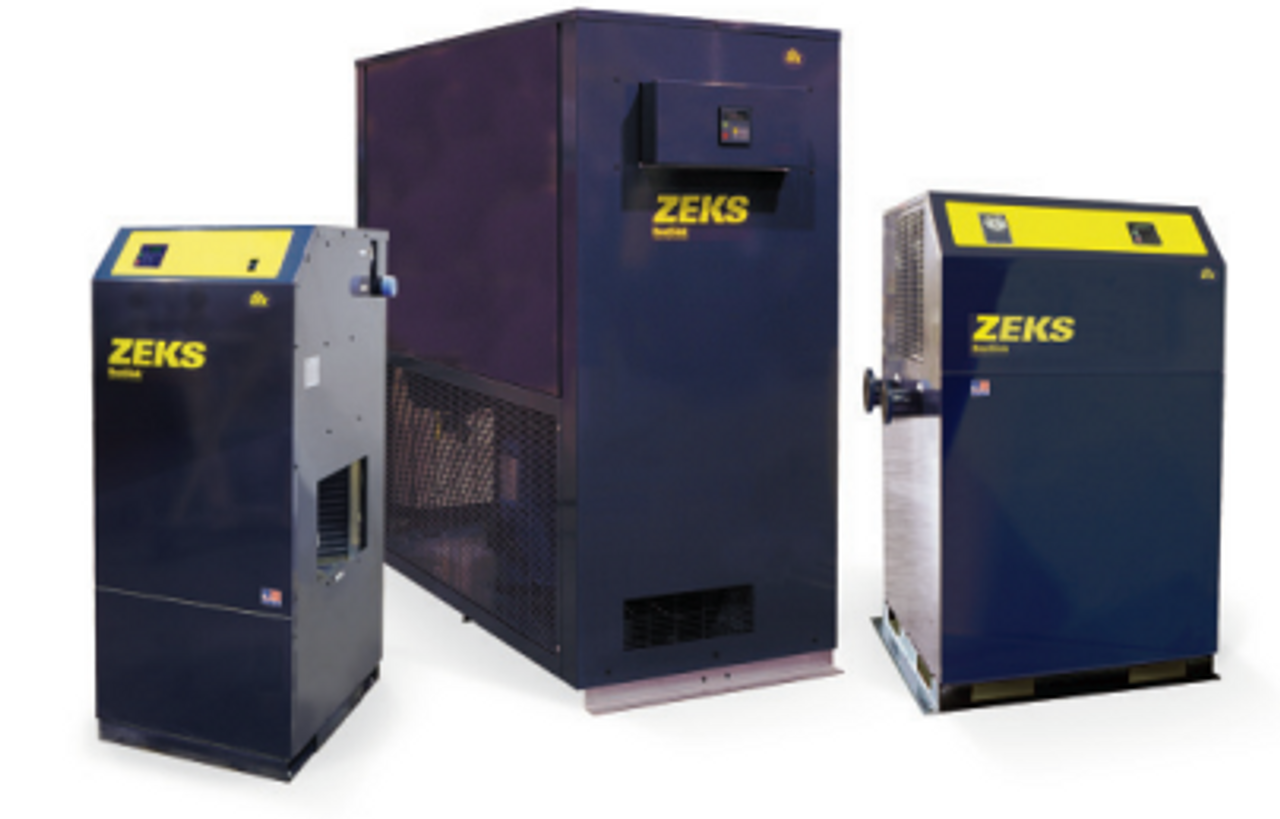

HeatSinkTM Cycling Refrigerated Dryers For High Pressure Compressed Air Systems
HPHSG Series dryers are engineered to meet the specific requirements of compressed air systems that operate at pressures as high as 680 PSIG. They provide continuous drying capacity in all manufacturing environments and, like all ZEKS HeatSinkTM dryers, they yield energy savings in applications where shift-demand or production output varies. Dryer components are sized and matched to enable stable dew point at full or partial loading for assurance of consistent air quality at the point of use.
HeatSinkTM HPHSG Series includes:
• Scroll Refrigeration Compressors – Energy efficiency and reliability; Low charge/Low GWP refrigerant
• Digital Controller – Dryer and refrigeration system status display, Drain Fault alarm (See reverse side for additional information)
• Network Communication – Modbus functionality via RS-485
• Water-Cooled Condenser – Assures rated performance even in elevated ambient temperatures (Air-Cooled option available)
• Phase Monitor – Protects dryer against voltage and phase imbalance
• Electronic No-Air-Loss Drain(s) – Provides effective and efficient condensate removal. Includes high liquid
level alarm functionality
• Stainless Steel Heat Exchangers – Specialized heat exchangers condition incoming compressed air to minimize energy cost, remove moisture, and eliminate downstream pipe sweating
Product Videos
Custom Field
Capacity SCFM 8000 SCFM
In/Out Air Connect Size 8” FLG
Max Operating Pressure 680 PSI
Operating 16.6 kW
Voltages 460V-3ph-60hz, 380V-3ph-50
Length 99.42 in
Width 81.46 in
Height 97.84 in
Weight 7573 lbs
Refrigerant Type R410A
Drain Connect 1/4" FNPT
Compressor (2) 12.7 HP
