Product Description

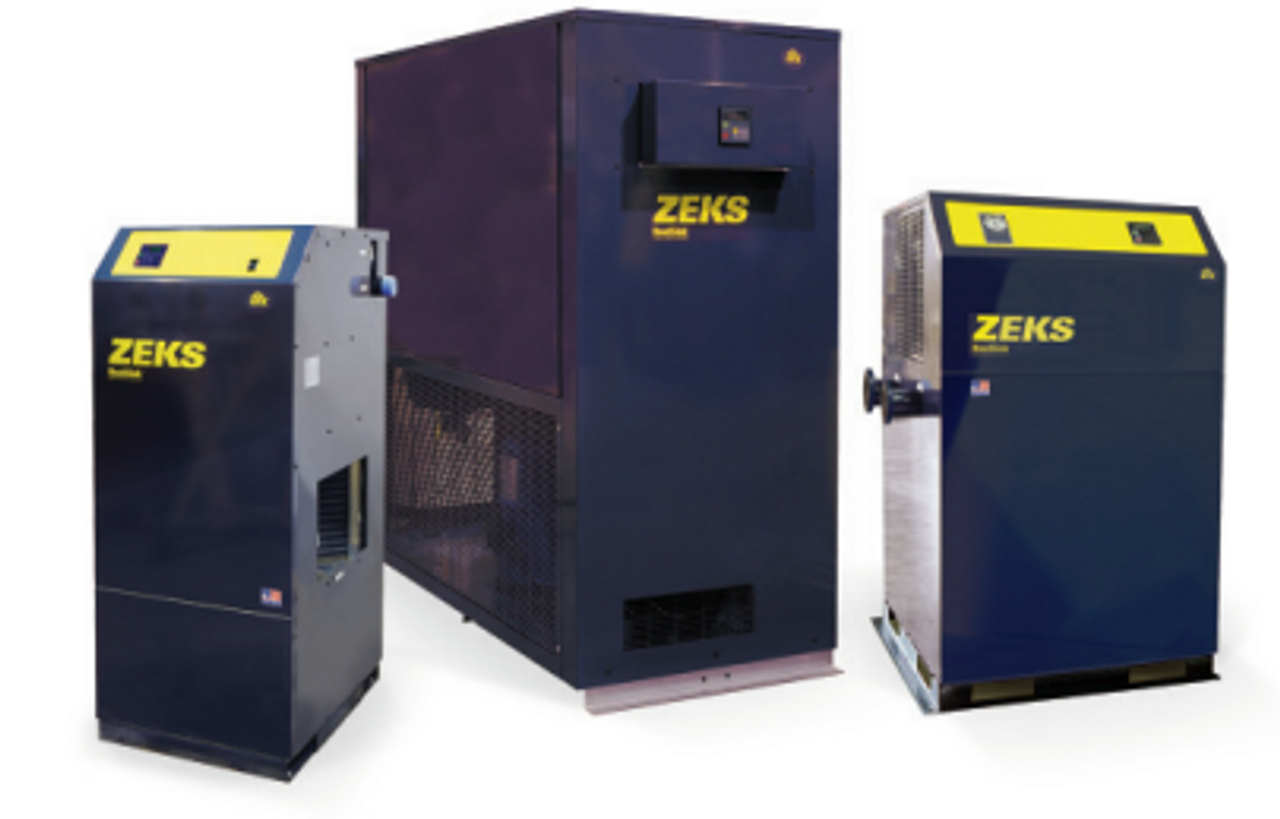

The Zeks 12SCFX is a 620 SCFM high pressure cycling refrigerated air dryer rated for a 38°F pressure dew point and a maximum operating pressure of 680 psig. It uses stainless steel CFX® heat exchangers, a fully hermetic refrigerant compressor and Digital Performance Control (DPC™), housed in a fully enclosed, powder coated cabinet. Technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Zeks
- Part number: 12SCFX
- Capacity: 620 SCFM
- Pressure dew point: 38°F
- Maximum operating pressure: 680 psig
- Standard features: air-cooled condenser, high pressure moisture separator, refrigerant suction pressure gauge, high pressure solenoid condensate drain, NEMA 1 electrical
- Optional features: water-cooled condenser, NEMA 4 electrical, complete stainless steel air circuit
- Condition: New
- Weight: 735 lbs
- Ships from: San Juan, Texas
Part number cross-reference
Zeks 12SCFX (also searched as 12 SCFX).
Product Videos
Custom Field
Capacity SCFM 620 SCFM
In/Out Air Connect Size 2” MPT
Max Operating Pressure 680 PSI
Operating 3.24 kW
Voltages 460V-3ph-60hz, 380V/420V-3ph-50hz, 230V/280V-3ph-60hz, 240V/220V-3ph-50hz
Length 30 in
Width 28 in
Height 58 in
Weight 735 lbs
Refrigerant Type R404A
Drain Connect 1/4" FPT
Refrig. Comp. 2-1/2 HP
