Product Description

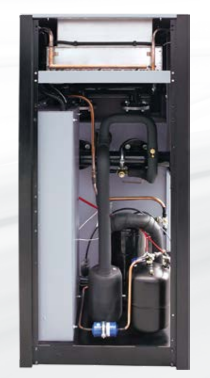

The Mikropor MK-US-250 is a 250 scfm cycling refrigerated compressed air dryer from the Mikropor MK-US Series. It removes moisture from compressed air leaving the compressor, which can otherwise cause system problems and affect production quality. This unit is new and ships from San Juan, Texas.
Details
- Brand: Mikropor
- Part number: MK-US-250
- Series: MK-US Series cycling refrigerated dryers
- Capacity: 250 scfm
- Refrigerant: R134a standard; R513a optional
- Condenser fan: controlled by pressure switches
- Condition: New
- Weight: 247 lbs
- Ships from: San Juan, Texas
Applications
- Food production, dairies and breweries
- Chemical plants and pharmaceutical industry
- Clean-room technology, microchip production and optics
- Paint spraying, powder coating and packaging
- Control and instrument air, process air and general air work
- Sand and shot blasting, weaving machines and photo labs
Sold by ProParts, Inc., serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MK-US-250 (also searched as MKUS250).
Product Videos
Custom Field
Capacity 250 scfm
Voltage 230V/1Ph/60Hz
Connection Size 2in NPT
Filter Quality and Type 1*GKON1205X+1*GKON1205Y
Replacement Filter Element Kit MKON1205 KIT
Pressure Kit 1.6 psi
Control Type DigiPro
Length 37.3 in
Width 28.6 in
Height 53.9 in
Weight 247 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 250 cfm
Air Connection 2" NPT
Replacement Filter Kit MKON1205 KIT
Pressure Drop 1.6 psig
Controller DigiPro
Dimensions (L x W x H) 37.3 x 28.6 x 53.9 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
