Product Description

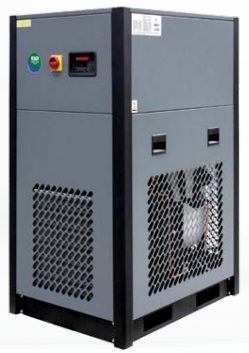

The Mikropor MK-US-100 is a 100 scfm cycling refrigerated compressed air dryer from the MK-US Series. It removes moisture from compressor discharge air, which helps prevent system problems, lost productivity and reduced product quality in air-powered applications.
Details
- Brand: Mikropor
- Part number: MK-US-100
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 100 scfm
- Refrigerant: R134a standard; R513a optional
- Low pressure drop design to reduce compressor power use
- Quick start and reaction time
- Pressure switches control the condenser fan motor to save energy and hold desired operating conditions
- Condition: New
- Weight: 172 lbs
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Applications
Food production, dairies, breweries, chemical plants, pharmaceutical, clean-room technology, paint spraying, powder coating, packaging, control and instrument air, sand and shot blasting, microchip production, optics, process air and general air work.
Part number cross-reference
MK-US-100 (MKUS100)
Product Videos
Custom Field
Capacity 100 scfm
Voltage 115V/1Ph/60Hz
Connection Size 1-1/2in NPT
Filter Quality and Type 1*GKON405X+1*GKON405Y
Replacement Filter Element Kit MKON405 KIT
Pressure Kit 1.5 psi
Control Type DigiPro
Length 19.9 in
Width 21.9 in
Height 34.4 in
Weight 172 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 100 cfm
Air Connection 1-1/2" NPT
Replacement Filter Kit MKON405 KIT
Pressure Drop 1.5 psig
Controller DigiPro
Dimensions (L x W x H) 19.9 x 21.9 x 34.4 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
