Product Description

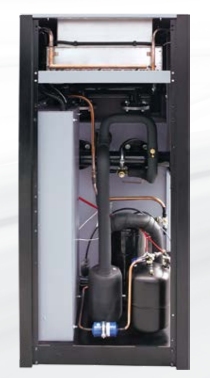

The Mikropor MK-US-1350 is a 1350 scfm cycling refrigerated compressed air dryer from the MK-US Series. It removes moisture from compressed air leaving the compressor outlet, which helps prevent system problems that can reduce productivity and affect final product quality. The dryer uses R134a refrigerant, with R513a available as an option.
Details
- Brand: Mikropor
- Part number: MK-US-1350
- Series: MK-US Series cycling refrigerated dryer
- Rated flow: 1350 scfm
- Refrigerant: R134a standard; R513a optional
- Low pressure drop design to reduce compressor power use
- Quick start and reaction time
- Pressure switches control the condenser fan motor
- Condition: New
- Weight: 906 lbs
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Applications
Food production, dairies, breweries, chemical plants, pharmaceutical, clean-room, paint spraying, powder coating, packaging, control and instrument air, sand and shot blasting, microchip production, optics, process air and general air work.
Part number cross-reference
MK-US-1350 (store SKU MK-US-1350).
Product Videos
Custom Field
Capacity 1350 scfm
Voltage 460V/3Ph/60Hz
Connection Size 4in Flange
Filter Quality and Type 1*GKON5850X+1*GKON5850Y
Replacement Filter Element Kit MKON2700 KIT
Pressure Kit 1.7 psi
Control Type ESD-3
Length 62.1 in
Width 39.1 in
Height 75.0 in
Weight 906 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 1350 cfm
Air Connection 4" Flange
Replacement Filter Kit MKON2700 KIT
Pressure Drop 1.7 psig
Controller ESD-3
Dimensions (L x W x H) 62.1 x 39.1 x 75.0 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
