Product Description

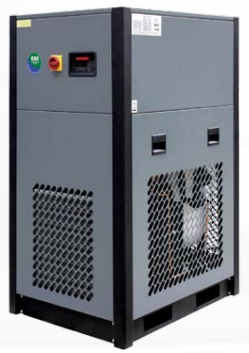

The Mikropor MK-US-1500 is a 1500 scfm MK-US Series cycling refrigerated compressed air dryer. It removes moisture from compressor discharge air, which can otherwise cause system faults, lower productivity and affect the quality of finished products. It uses R134a refrigerant, with R513a available as an option.
Details
- Brand: Mikropor
- Part number: MK-US-1500
- Series: MK-US, cycling refrigerated
- Capacity: 1500 scfm
- Refrigerant: R134a standard, R513a optional
- Low pressure drop design to reduce compressor power use
- Quick start and reaction time
- Pressure switches control the condenser fan motor to save energy and hold operating conditions
- Condition: New
- Weight: 1014 lbs
- Ships from: San Juan, Texas
Applications
Food production, dairies, breweries, chemical plants, pharmaceutical, clean-room, paint spraying, powder coating, packaging, control and instrument air, sand or shot blasting, microchip production, optics, process air and general air work.
Sold by ProParts, Inc. Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MK-US-1500
Product Videos
Custom Field
Capacity 1500 scfm
Voltage 460V/3Ph/60Hz
Connection Size 4in Flange
Filter Quality and Type 1*GKON5850X+1*GKON5850Y
Replacement Filter Element Kit MKON2700 KIT
Pressure Kit 1.9 psi
Control Type ESD-3
Length 55.0 in
Width 33.3 in
Height 69.6 in
Weight 1014 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 1500 cfm
Air Connection 4" Flange
Replacement Filter Kit MKON2700 KIT
Pressure Drop 1.9 psig
Controller ESD-3
Dimensions (L x W x H) 55.0 x 33.3 x 69.6 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
