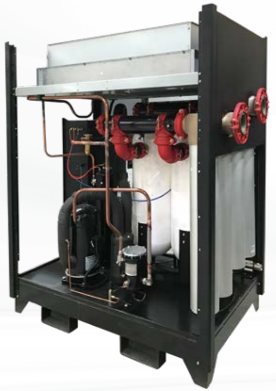

Product Description
The Mikropor MK-US-140 is a 140 scfm cycling refrigerated compressed air dryer from the MK-US Series. It removes moisture from compressor discharge air, which can otherwise cause system faults, reduce productivity and affect the quality of finished products. This unit is sold new by ProParts, Inc., with technical support available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Part number: MK-US-140
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 140 scfm
- Refrigerant: R134a standard; R513a optional
- Low pressure drop design and quick start and reaction time
- Pressure switches control the condenser fan motor to save energy
- Condition: New
- Weight: 187 lbs
- Ships from: San Juan, Texas
Applications
Food production, dairies, breweries, clean conveying air, chemical plants, clean-room technology, pharmaceutical, weaving machines, photo labs, paint spraying, powder coating, packaging, control and instrument air, sand and shot blasting, microchip production, optics, process air and general air work.
Part number cross-reference
MK-US-140 (Mikropor MK-US Series, 140 scfm)
Product Videos
Custom Field
Capacity 140 scfm
Voltage 230V/1Ph/60Hz
Connection Size 1-1/2in NPT
Filter Quality and Type 1*GKON405X+1*GKON405Y
Replacement Filter Element Kit MKON405 KIT
Pressure Kit 2.5 psi
Control Type DigiPro
Length 19.9 in
Width 21.9 in
Height 34.4 in
Weight 187 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 140 cfm
Air Connection 1-1/2" NPT
Replacement Filter Kit MKON405 KIT
Pressure Drop 2.5 psig
Controller DigiPro
Dimensions (L x W x H) 19.9 x 21.9 x 34.4 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
