Product Description

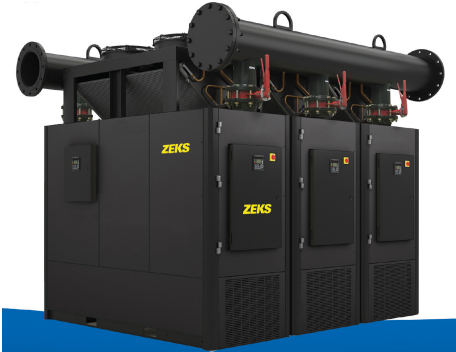

The Zeks 7200NCGM is a 7,200 SCFM Multi-Module refrigerated non-cycling air dryer. A Multi-Module dryer is an assembly of multiple air treatment modules, each with its own refrigeration system and integrated heat exchanger. This unit is sold new by ProParts, Inc. and ships from San Juan, Texas.
Details
- Brand: Zeks
- Part number: 7200NCGM
- Capacity: 7,200 SCFM
- Type: Multi-Module refrigerated non-cycling air dryer
- Heat exchanger: Proprietary integrated design
- Condenser: Microchannel air-cooled or top-mounted water-cooled
- Refrigeration compressors: Scroll
- Refrigerant: R-410A
- Controller: Microprocessor with refrigeration readings, RS-485 communications, maintenance alerts, alarm annunciation, fault log and drain status/test
- Filtration: Integrated dual-element filter removing particles as small as 0.1 micron
- Hot gas valve: Electronic, with automatic seasonal adjustment
- Condition: New
- Weight: 9,701 lb
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Part number cross-reference
Zeks 7200NCGM
Product Videos
Custom Field
Capacity 7,200 SCFM
In/Out Air Connect Size 10” FLG
Differential Pressure 4.1 psid
Max Operating Pressure 200 PSIG
Refrigerant Compressor (3) 12.7 HP
Operating 33.8 kW
Voltages 460V-3ph-60hz, 380V-3ph-50hz
Refrigerant Type R410A
Number of Modules 3
Drain Connect 1/2" FNPT (3)
Length 99.42 in
Width 115.60 in
Height 103.93 in
Weight 9701 lbs
