Product Description

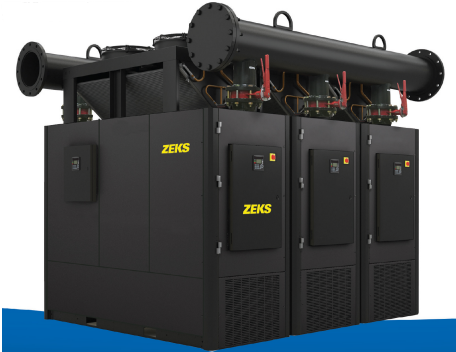

The Zeks 12000NCGM is a 12,000 SCFM Multi-Module refrigerated non-cycling air dryer for compressed air systems. A Multi-Module dryer is an assembly of multiple air treatment modules, each with its own refrigeration system and integrated heat exchanger. Zeks designed the NC Series and Multi-Module dryers for energy efficiency, reliability, a consistent dew point and a small footprint.
Details
- Brand: Zeks
- Part number: 12000NCGM
- Capacity: 12,000 SCFM
- Type: Multi-Module refrigerated non-cycling air dryer
- Proprietary integrated heat exchanger
- Microchannel air-cooled condenser or top-mounted water-cooled condenser
- Scroll compressor(s)
- Microprocessor controller with refrigeration readings, RS-485 communications, maintenance alerts, alarm annunciation, fault log and drain status/test
- R-410A refrigerant (zero ODP)
- Integrated dual-element filter that removes particles as small as 0.1 micron
- Electronic hot gas valve with automatic seasonal adjustment
- Condition: New
- Weight: 14,382 lbs
- Ships from: San Juan, Texas
- ProParts compressor technicians offer technical support by phone
Part number cross-reference
Zeks 12000NCGM (store SKU 12000NCGM)
Product Videos
Custom Field
Capacity 12,000 SCFM
In/Out Air Connect Size 14” FLG
Differential Pressure 4.1 psid
Max Operating Pressure 200 PSIG
Refrigerant Compressor (4) 20.7 HP
Operating 51.7 kW
Voltages 460V-3ph-60hz, 380V-3ph-50hz
Refrigerant Type R410A
Number of Modules 4
Drain Connect 1/2" FNPT (4)
Length 99.42 in
Width 149.98 in
Height 105.53 in
Weight 14,382 lbs
