Product Description

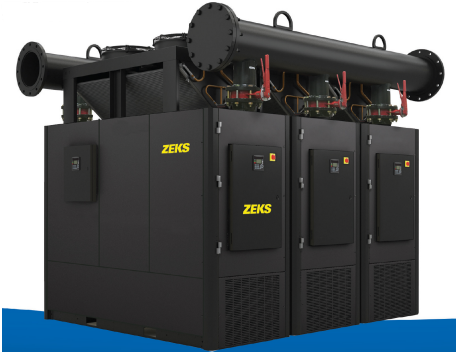

The Zeks 6000NCGM is a 6,000 SCFM Multi-Module refrigerated non-cycling air dryer for industrial compressed air systems. A Multi-Module dryer is an assembly of multiple air treatment modules, each with its own refrigeration system and integrated heat exchanger. This unit is sold new by ProParts, Inc. and ships from San Juan, Texas.
Features
- Proprietary integrated heat exchanger design for energy efficiency and a small footprint
- Microchannel air-cooled condenser or top-mounted water-cooled condenser
- Scroll refrigeration compressor(s)
- Microprocessor controller with refrigeration readings, RS-485 communications, maintenance alerts, alarm annunciation, fault log and drain status/test
- R-410A refrigerant with zero ODP
- Integrated dual-element filter that removes particles as small as 0.1 micron
- Electronic hot gas valve with automatic seasonal adjustment
Details
- Brand: Zeks
- Part number: 6000NCGM
- Capacity: 6,000 SCFM
- Type: Multi-Module refrigerated non-cycling air dryer
- Condition: New
- Weight: 6,754 lbs
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Part number cross-reference
Zeks 6000NCGM (also searched as 6000-NCGM).
Product Videos
Custom Field
Capacity 6,000 SCFM
In/Out Air Connect Size 10” FLG
Differential Pressure 4.1 psid
Max Operating Pressure 200 PSIG
Refrigerant Compressor (2) 20.7 HP
Operating 25.9 kW
Voltages 460V-3ph-60hz, 380V-3ph-50hz
Refrigerant Type R410A
Number of Modules 2
Drain Connect 1/2" (2)
Length 99.42 in
Width 81.53 in
Height 98.89 in
Weight 6754 lbs
