Product Description

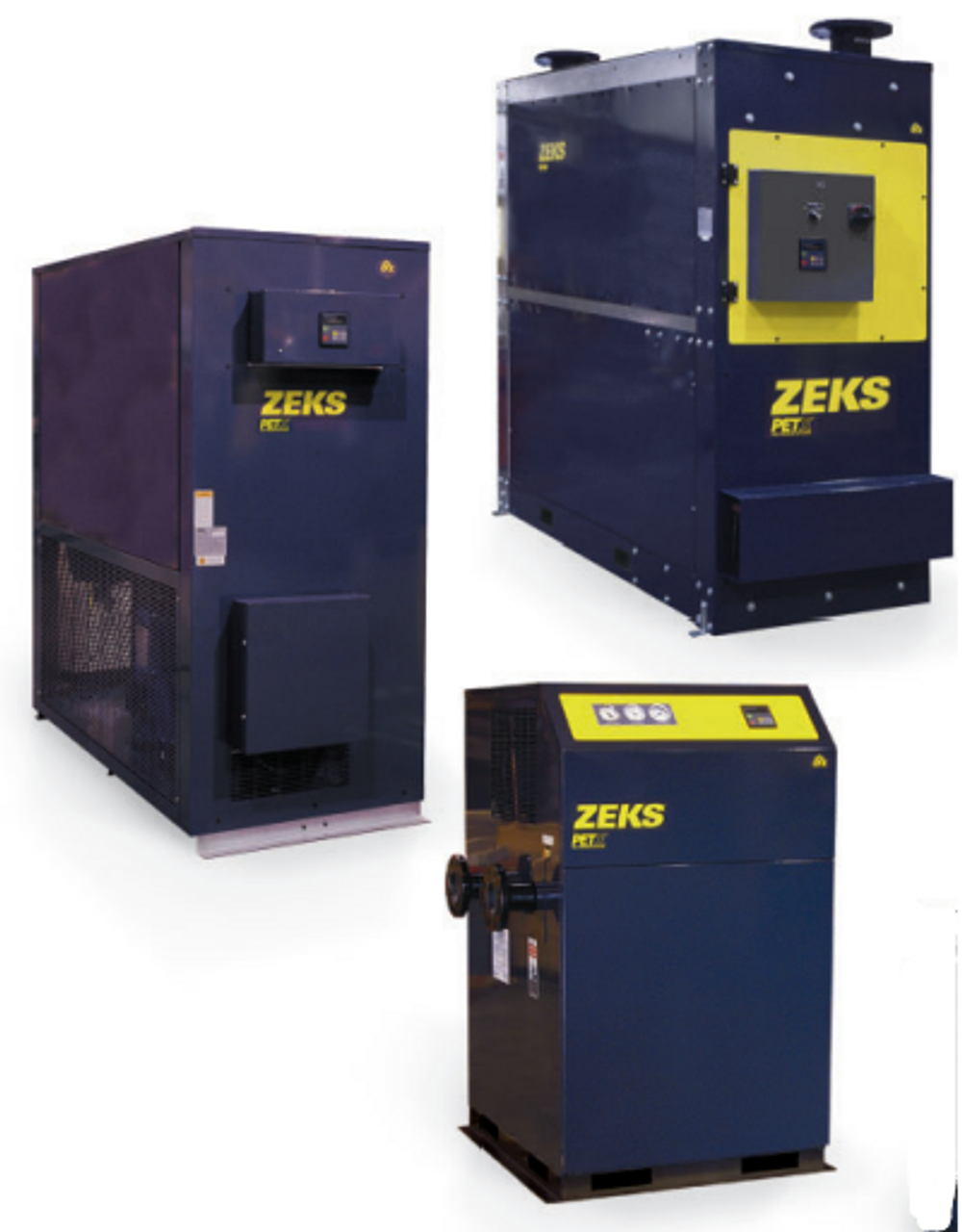

The Zeks 17PET-X (part number 17PETX) is a 1610 SCFM high pressure non-cycling refrigerated air dryer rated for a 38°F pressure dew point and up to 680 psig maximum operating pressure. It uses stainless steel CFX® heat exchangers, a fully hermetic refrigerant compressor and an air-cooled refrigeration condenser in a fully enclosed, powder coated cabinet. Sold new by ProParts, Inc., with technical support available by phone from ProParts compressor technicians.
Details
- Brand: Zeks
- Part number: 17PETX
- Capacity: 1610 SCFM
- Pressure dew point: 38°F
- Maximum operating pressure: 680 psig
- Environmentally friendly refrigerant
- High pressure moisture separator and high pressure solenoid condensate drain
- Protection against high pressure exchanger leak
- Digital Performance Controller (parameters vary per PETX model)
- ASME and CRN pressure vessel rating
- Optional features: water-cooled refrigeration condenser, weatherproof protection against rain and splashing water, NEMA 4 electrics, complete 304L stainless steel air circuit, 1 micron ZTF prefilter, .01 micron ZTF afterfilter
- Condition: New
- Weight: 1570 lbs
- Ships from: San Juan, Texas
Part number cross-reference
17PETX, also listed as 17PET-X.
Product Videos
Custom Field
Capacity 1610 SCFM
In/Out Air Connect Size 4” FLG
Connection 1/4” FPT
Working Pressure 680 PSI
Refrigerant Compressor 5.0 HP
Operating 6.21 kW
Voltages 208V/230V-3ph-60hz, 220V-3ph-50hz, 460V-3ph-60hz, 380V-3ph-50hz
Length 76.38 in
Width 32.5 in
Height 69 in
Weight 1570 lbs
