Product Description

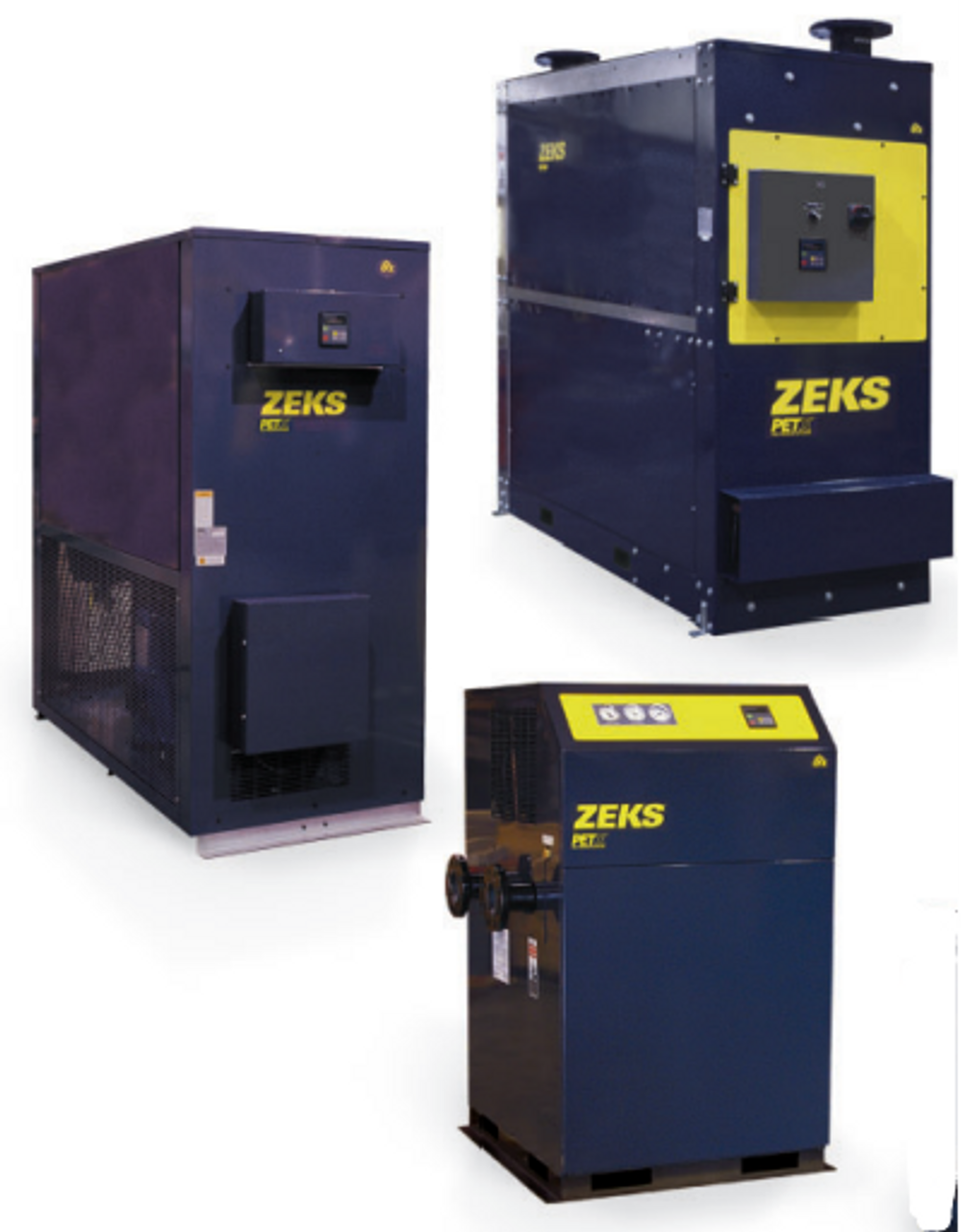

The Zeks 13PETX (13PET-X) is a 768 SCFM high pressure, non-cycling refrigerated air dryer rated for a 680 psig maximum operating pressure. It delivers a 38°F pressure dew point using stainless steel CFX® heat exchangers, a fully hermetic refrigerant compressor and an air-cooled refrigeration condenser. Sold new by ProParts, Inc. and shipped from San Juan, Texas, with phone technical support from ProParts compressor technicians.
Details
- Brand: Zeks
- Part number: 13PETX
- Capacity: 768 SCFM
- Pressure dew point: 38°F
- Maximum operating pressure: 680 psig
- High pressure moisture separator and high pressure solenoid condensate drain
- Protection against high pressure exchanger leak
- Digital Performance Controller (parameters vary per PETX model)
- Refrigerant suction pressure gauge
- Environmentally friendly refrigerant
- ASME and CRN pressure vessel rating
- Fully enclosed, powder coated cabinet
- Optional features: water-cooled condenser, weatherproof protection, NEMA 4 electrics, complete 304L stainless steel air circuit, 1 micron ZTF prefilter, .01 micron ZTF afterfilter
- Condition: New
- Weight: 730 lbs
- Ships from: San Juan, Texas
Part number cross-reference
13PETX, also listed as 13PET-X.
Product Videos
Custom Field
Capacity 768 SCFM
In/Out Air Connect Size 3” FLG
Connection 1/4” FPT
Working Pressure 680 PSI
Refrigerant Compressor 2.5 HP
Operating 3.59 kW
Voltages 208V/230V-3ph-60hz, 220V-3ph-50hz, 460V-3ph-60hz, 380V-3ph-50hz
Length 39 in
Width 44.25 in
Height 61.5 in
Weight 730 lbs
