Product Description

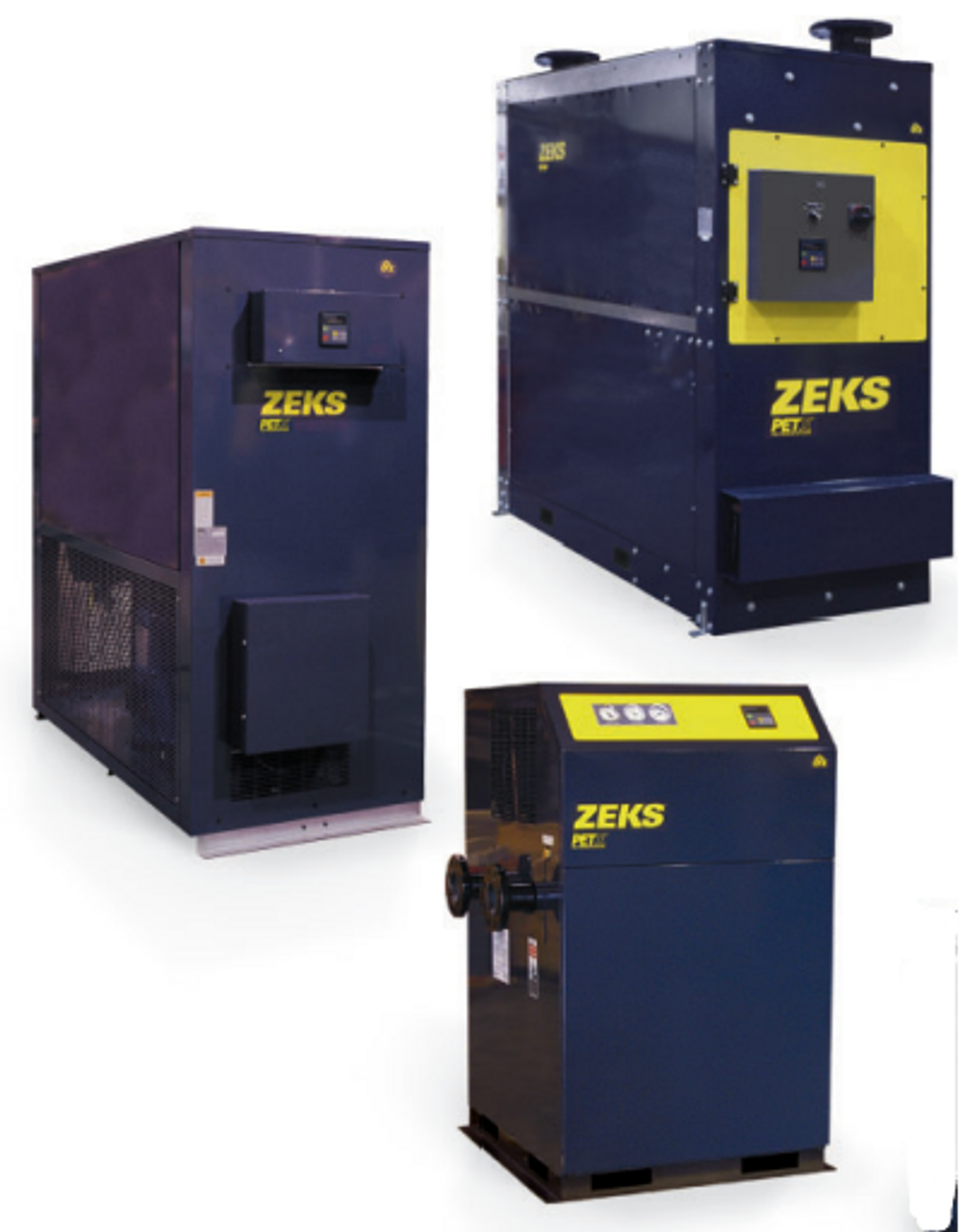

The Zeks 16PET-X (part number 16PETX) is a high pressure, non-cycling refrigerated air dryer rated at 1237 SCFM with a 680 psig maximum operating pressure. It delivers a 38°F pressure dew point using stainless steel CFX® heat exchangers and an air-cooled refrigeration condenser. This unit is sold new by ProParts, Inc.
Details
- Brand: Zeks
- Part number: 16PETX
- Capacity: 1237 SCFM
- Standard features: 38°F pressure dew point; fully hermetic refrigerant compressor; environmentally friendly refrigerant; high pressure moisture separator; protection against high pressure exchanger leak; Digital Performance Controller (parameters vary per PETX model); refrigerant suction pressure gauge (9PETX–16PETX); high pressure solenoid condensate drain; ASME and CRN pressure vessel rating; fully enclosed, powder coated cabinet
- Optional features: water-cooled refrigeration condenser (9PETX–19PETX); weatherproof protection against rain and splashing water; NEMA 4 electrics (9PETX–19PETX); complete 304L stainless steel air circuit; 1 micron ZTF prefilter; .01 micron ZTF afterfilter
- Condition: New
- Weight: 870 lbs
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Part number cross-reference
16PETX, also listed as 16PET-X.
Product Videos
Custom Field
Capacity 1237 SCFM
In/Out Air Connect Size 3” FLG
Connection 1/4” FPT
Working Pressure 680 PSI
Refrigerant Compressor 4.0 HP
Operating 5.39 kW
Voltages 208V/230V-3ph-60hz, 220V-3ph-50hz, 460V-3ph-60hz, 380V-3ph-50hz
Length 39 in
Width 44.25 in
Height 61.5 in
Weight 870 lbs
