Product Description

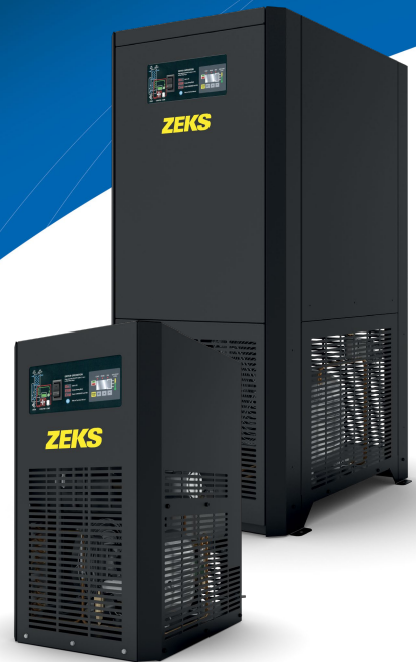

The Zeks 75HSK is a 75 SCFM HeatSink refrigerated cycling air dryer, controlled automatically through a panel-mounted digital controller with illuminated display. The controller shows dryer operating status, energy savings indication, a condensate drain timing/test interface, and visual indication of faults, drain open and condenser fan operation.
Details
- Brand: Zeks
- Part number: 75HSK
- Capacity: 75 SCFM
- Type: HeatSink refrigerated cycling air dryer
- Multi-layer heat exchanger with integrated precooler/reheater and low pressure drop
- Pre and post filtration with ZEKS Grade G and H filters to protect the dryer and downstream processes
- R-513A refrigerant with small charge volume
- Timed solenoid condensate drain, adjustable via the digital controller
- Filterstop/strainer drain connection that protects the drain from debris
- Certified to UL standard 60335-1 and 60335-2-40
- Simple electrical connection: standard 3-prong plug with ground (10-150 cfm models)†
- Galvanized internal structure and powder coated enclosure
- Condition: New
- Weight: 175 lbs
- Ships from: San Juan, Texas
† The 3-prong plug connection applies to 10-150 cfm models.
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
Zeks 75HSK (store SKU 75HSK)
Product Videos
Custom Field
Capacity SCFM 75 SCFM
In/Out Air Connect Size 1” FPT
Pressure Drop 1.38 PSID
Voltage 115V / 1ph, 60hz
Length 16.6 in
Width 22.4 in
Height 30.4 in
Weight 175 lbs
Timed Solenoid Drain Included
Pre & After Filters Included
Microprocessor Controller Included
Remote Alarm Ready Included
