Product Description

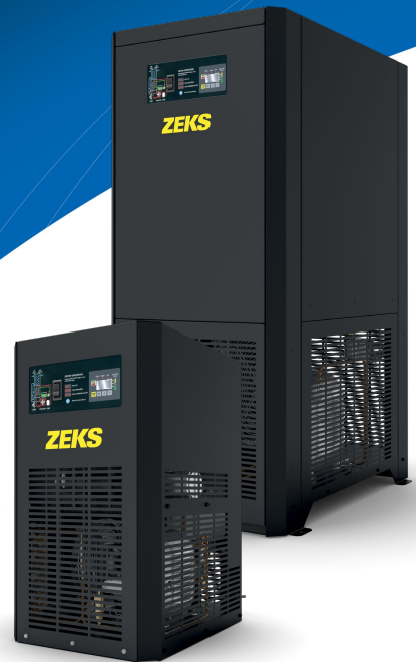

The Zeks 50HSK is a 50 SCFM HeatSink refrigerated cycling air dryer. A panel-mounted digital controller with an illuminated display runs the dryer automatically. It shows operating status, energy savings and faults, and it controls the condensate drain timing.
Details
- Brand: Zeks
- Part number: 50HSK
- Capacity: 50 SCFM
- Condition: New
- Weight: 145 lbs
- Controller display: operating status, energy savings indication, condensate drain timing/test interface, and visual indication of faults, drain open and condenser fan operation
- Multi-layer heat exchanger with integrated precooler/reheater and low pressure drop
- Pre- and post-filtration with ZEKS Grade G and H filters
- R-513A refrigerant with a small charge volume
- Timed solenoid condensate drain, adjustable through the digital controller
- Filterstop/strainer drain connection that is easy to clean
- Certified to UL standards 60335-1 and 60335-2-40
- Electrical connection: standard 3-prong grounded plug (applies to 10-150 cfm models)
- Galvanized internal structure and powder-coated enclosure
- Ships from San Juan, Texas. ProParts compressor technicians provide technical support by phone.
Part number cross-reference
Zeks 50HSK (also listed as 50-HSK).
Product Videos
Custom Field
Capacity SCFM 50 SCFM
In/Out Air Connect Size 3/4” FPT
Pressure Drop 0.77 PSID
Voltage 115V / 1ph, 60hz
Length 15.2 in
Width 19.7 in
Height 26.5 in
Weight 145 lbs
Timed Solenoid Drain Included
Pre & After Filters Included
Microprocessor Controller Included
Remote Alarm Ready Included
