Product Description

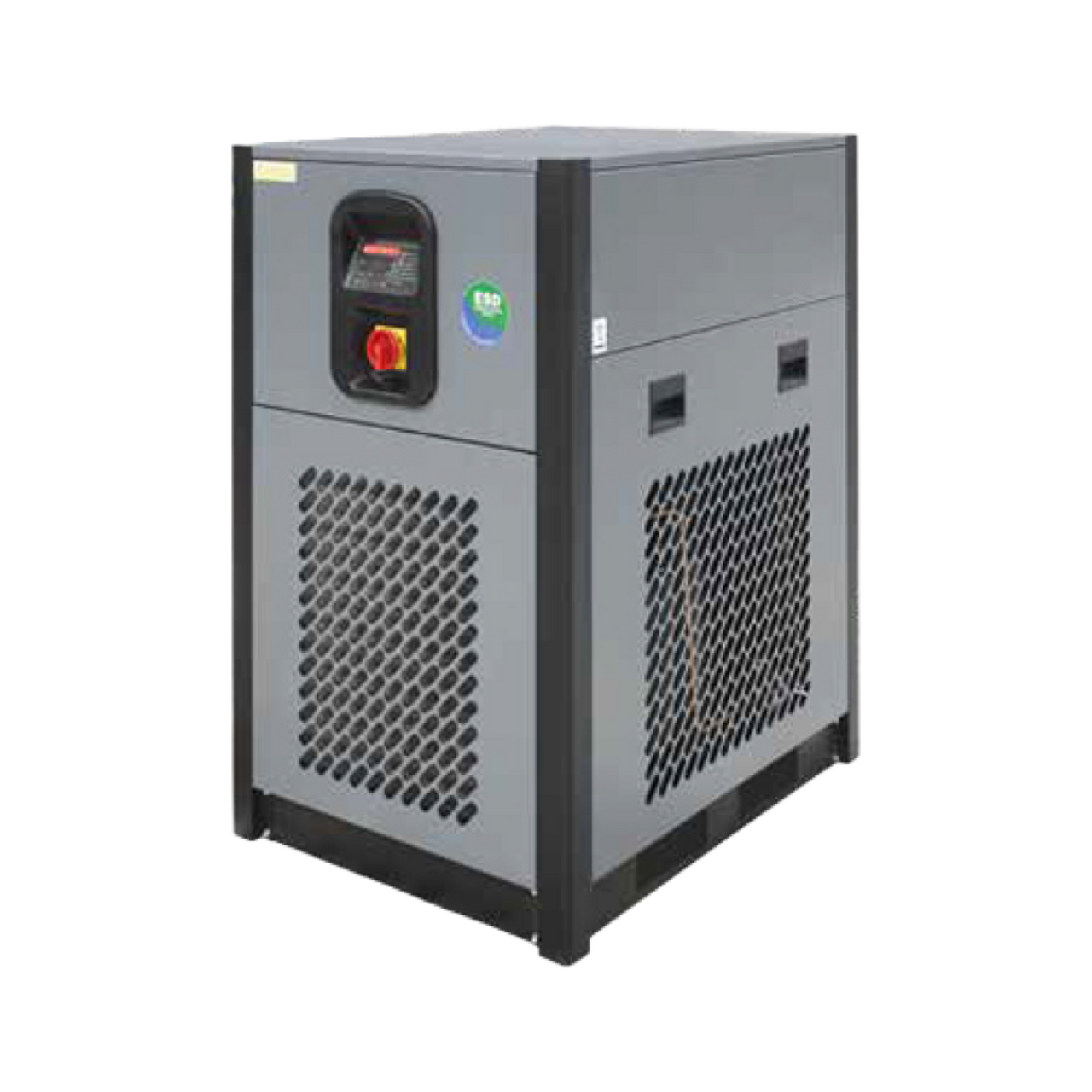

The Mikropor MKHP-US-70-115V is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-70, configured for 115V power. It is supplied new and sold by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Product line: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-70
- Voltage: 115V
- Part number / SKU: MKHP-US-70-115V
- Category: Refrigerated Dryers
- Condition: New
- Listed weight: 1 lb
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-70-115V, also listed as MK-HP-150-NPT-NB-DPR0-115160-AC7012NFMKR.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 3/4" NPT
Voltage 115V/1Ph/60Hz
Capacity (FAD) 70 cfm
Dimensions (L x W x H) 18 x 16 x 25 in
Weight 88 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
