Product Description

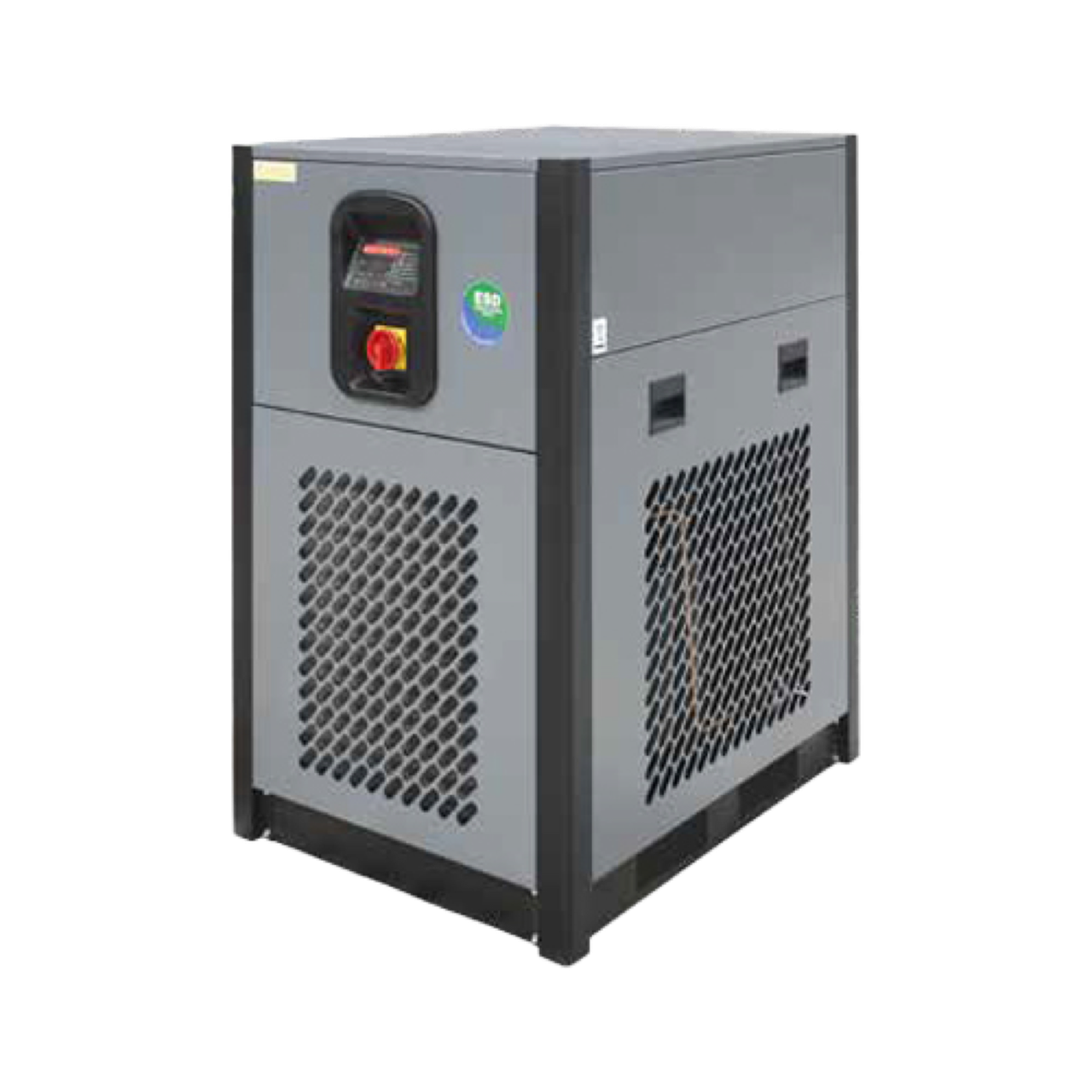

The Mikropor MKHP-US-140-115V is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-140, configured for 115V. This unit is supplied new and is listed under refrigerated dryers. It is sold by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-140
- Voltage: 115V
- Part number / SKU: MKHP-US-140-115V
- Configuration code: MK-HP-300-NPT-NB-DPR0-115160-AC7012NFMKR
- Condition: New
- Listed weight: 1 lb
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKHP-US-140-115V, also identified as model MKHP-US-140 115V and configuration code MK-HP-300-NPT-NB-DPR0-115160-AC7012NFMKR.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 1-1/4" NPT
Voltage 115V/1Ph/60Hz
Capacity (FAD) 140 cfm
Dimensions (L x W x H) 20 x 18 x 30 in
Weight 95 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
