Product Description

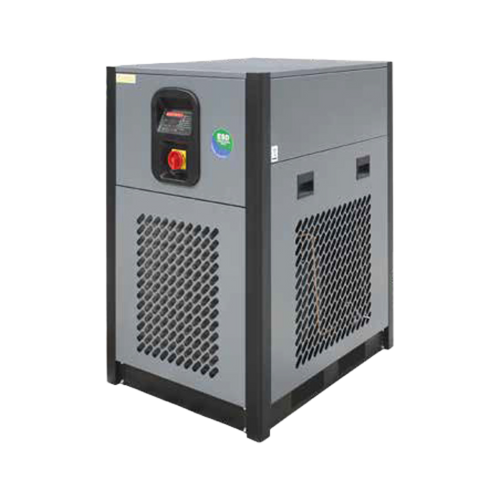

The Mikropor MK-HP High-Pressure Refrigerated Air Dryer, part number MKHP-US-40-115V, is model MKHP-US-40 configured for 115V power. This new unit belongs to the Mikropor MK-HP line of high-pressure refrigerated dryers for compressed air systems. It is sold by ProParts, Inc., serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-40
- Voltage: 115V
- Part number / SKU: MKHP-US-40-115V
- Condition: New
- Category: Refrigerated Dryers
- Ships from: San Juan, Texas
- Support: Technical support available by phone from ProParts compressor technicians
Part number cross-reference
MKHP-US-40-115V is also listed as MKHP-US-40 115V and by the configuration code MK-HP-90-NPT-NB-DPR0-115160-AC-7012NFMKR.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 3/4" NPT
Voltage 115V/1Ph/60Hz
Capacity (FAD) 40 cfm
Dimensions (L x W x H) 18 x 14 x 22 in
Weight 82 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
