Product Description

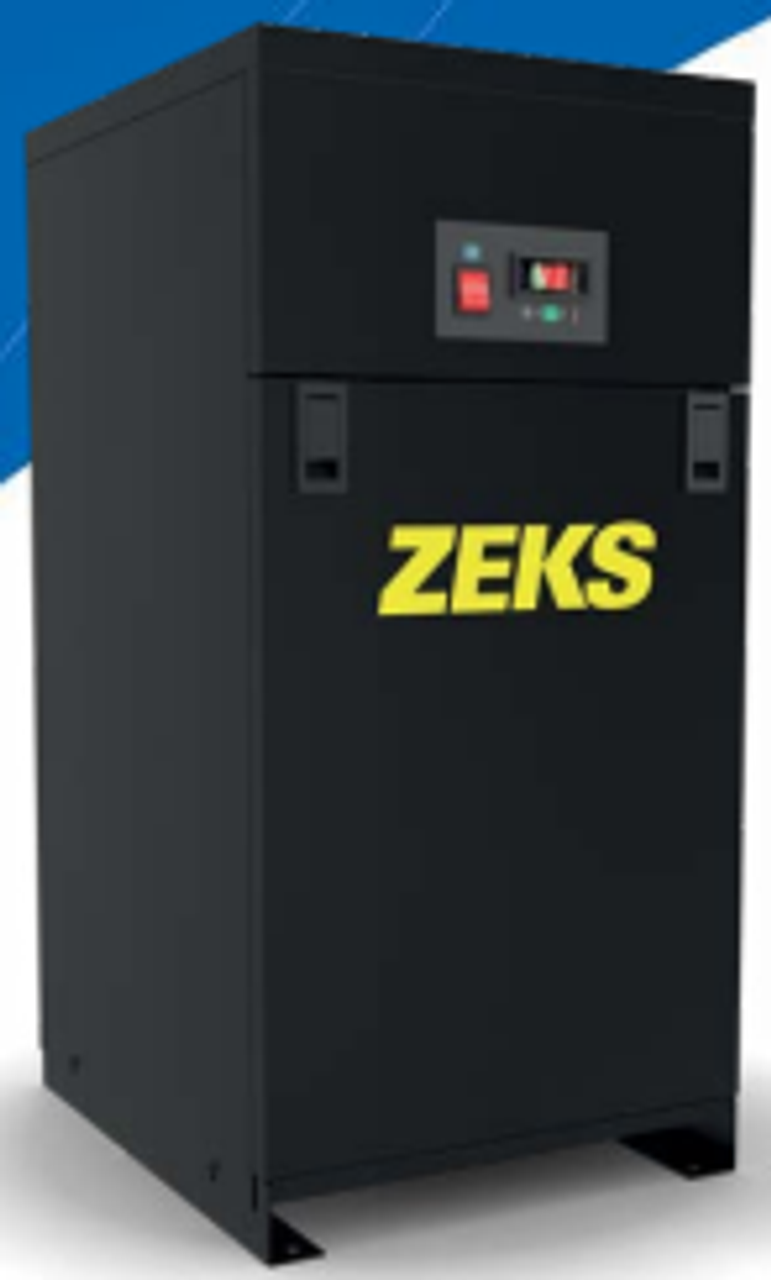

The Zeks HTC100 (part number HTC100AD0) is a 100 SCFM hi-temp, non-cycling refrigerated air dryer from the Zeks HTC Series, built for high-temperature compressed air applications such as reciprocating compressors with discharge temperatures up to 200°F. It has a compact footprint with an integrated aftercooler, moisture separator and time-solenoid drain. The HTC Series is offered in six models from 15 to 100 SCFM; the HTC100 is the 100 SCFM model.
Details
- Brand: Zeks
- Part number: HTC100AD0 (store SKU HTC100)
- Capacity: 100 SCFM
- Type: Non-cycling refrigerated air dryer, high temperature
- Inlet temperature: Designed to perform up to 200°F air inlet temperature
- Refrigerant: R513A, a low Global Warming Potential (GWP) refrigerant
- Integrated air-cooled aftercooler and air-to-air exchanger
- Internal 1.0-micron filter separation element
- Microprocessor controller with compressor on/off LED and fault alarm notification via touchpad interface
- Factory tested; UL listed to UL 60335-1 and 60335-2-40 and CSA standards
- Condition: New
- Weight: 150 lbs
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Part number cross-reference
HTC100AD0, HTC100
Product Videos
Custom Field
Capacity 100 SCFM
Connection Size 1" FNPT
Operating 1.16 kW
Max Operating Pressure 200 PSI
Voltages 115V / 1ph, 60hz
Refrigerant Type R-513A
Length 26.7 in
Width 20.8 in
Height 36.6 in
Weight 150 lbs
Microprocessor Controller Included
Timed Solenoid Drain Included
NEMA 1 Included
