Product Description
Engineered for High-Temperature Demands

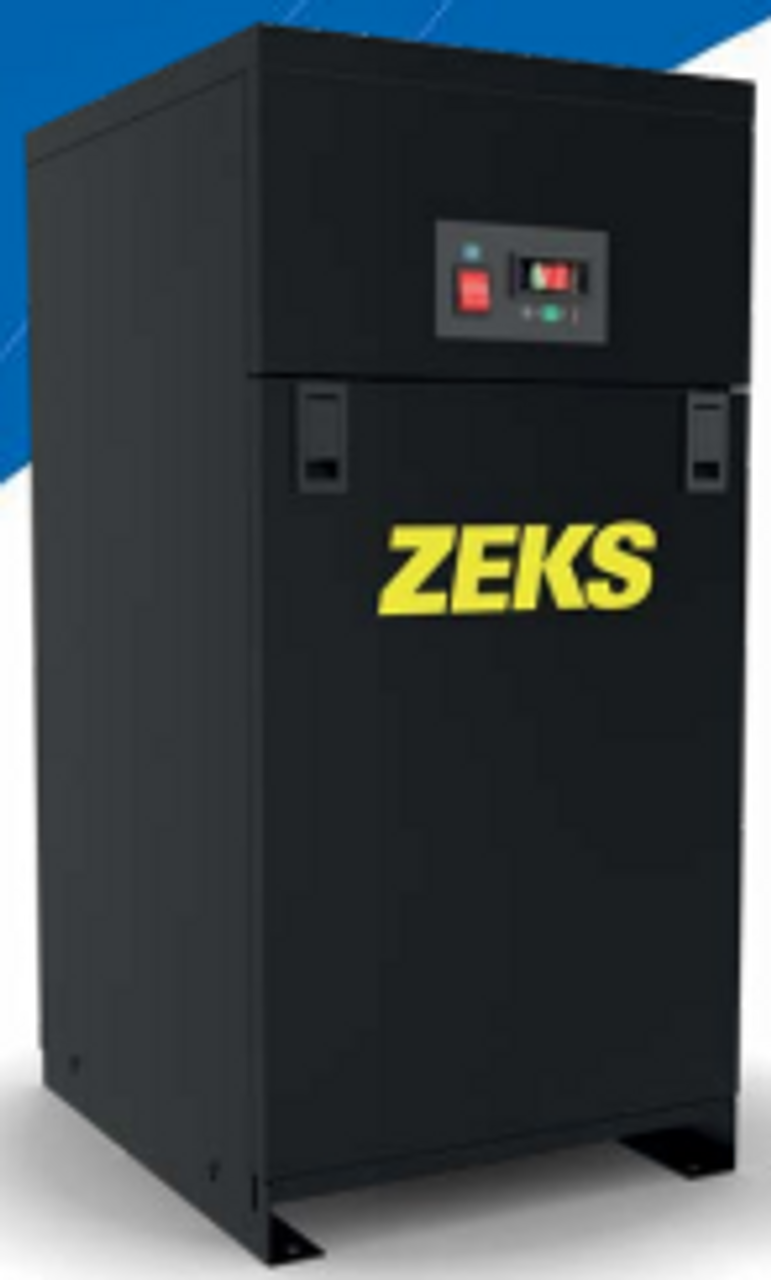

The ZEKS HTC SeriesTM is purpose-built for high-temperature compressed air applications, especially those using reciprocating compressors with discharge temperatures up to 200°F. With a compact footprint and integrated components like an aftercooler, moisture separator, and time-solenoid drain, the HTC Series simplifies installation while delivering reliable, energy-efficient performance. Available in six models from 15 to 100 SCFM, it’s the ideal solution for industrial environments that demand consistent moisture removal and long-term durability.
Standard Features
• R513A Refrigerant - Pair efficiency with sustainability with a low Global Warming Potential (GWP) Refrigerant
• Integrated Air-Cooled Aftercooler - Efficiently lowers inlet air temperature
• Air-to-Air Exchanger - Economically cools air for energy savings
• High Inlet Temperature Design - Designed to perform up to 200°F air inlet temperature
• Factory Tested and UL Listed - Safety certified to UL 60335-1 & 60335 2-40 and CSA standards
Additional Features for 60-100 SCFM
• Internal Filter Element - 1.0-micron internal filter separation element
• Microprocessor Controller - Compressor on/off LED; fault alarm notification with touchpad user interface
Product Videos
Custom Field
Capacity 15 SCFM
Connection Size 3/4" MNPT
Operating .48 kW
Max Operating Pressure 200 PSI
Voltages 115V / 1ph, 60hz
Refrigerant Type R-513A
Length 24 in
Width 20.9 in
Height 35.6 in
Weight 110 lbs
Microprocessor Controller N/A
Timed Solenoid Drain Included
NEMA 1 Included
