Product Description

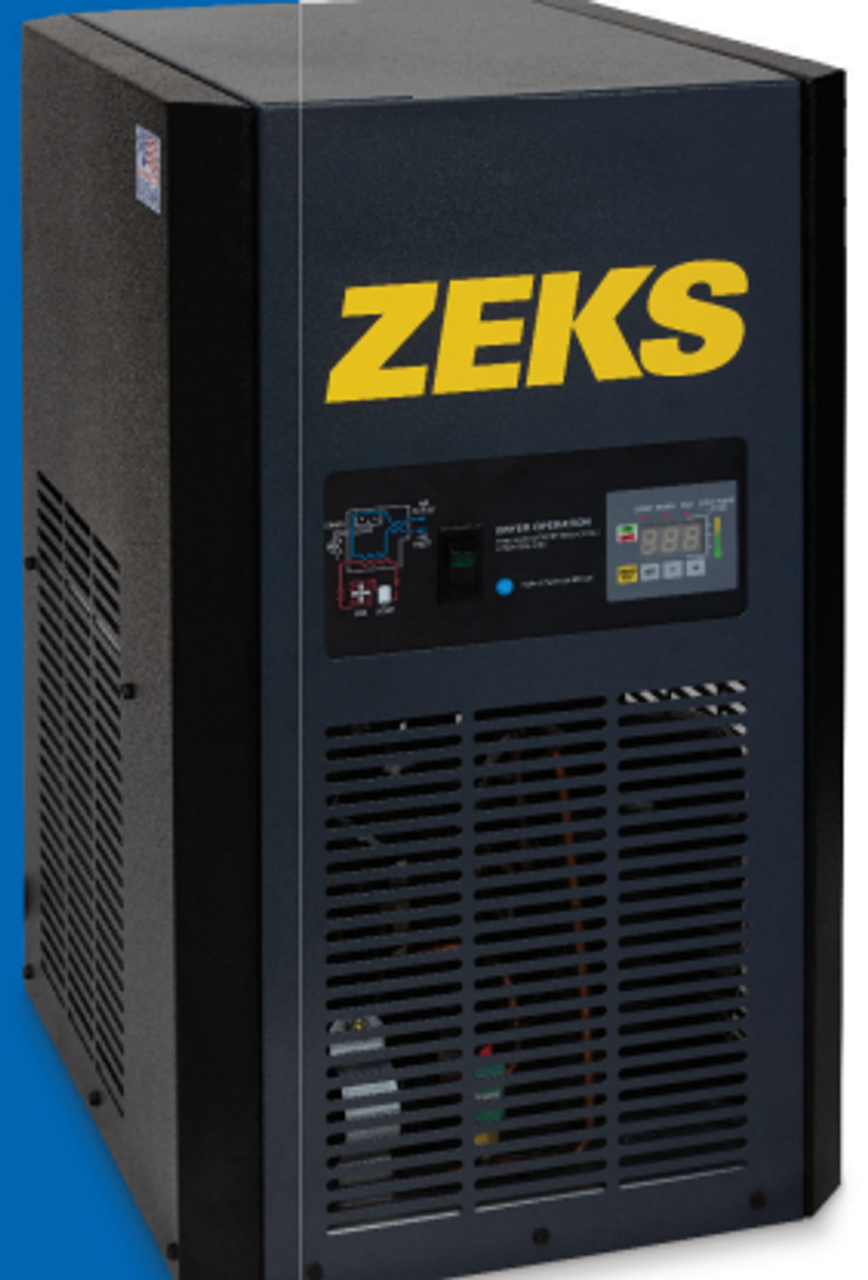

The Zeks 75NCJ is a 75 SCFM NC Series non-cycling refrigerated air dryer that removes moisture from compressed air to help protect tools, equipment and processes. The NC Series uses a compact design, a constant pressure valve and variable-speed fans for consistent performance with optimized energy use. The series covers 12 models from 7 to 250 SCFM for air systems with 2.5 to 40 compressor horsepower.
Details
- Part number: 75NCJ
- Brand: Zeks
- Capacity: 75 SCFM
- Refrigerant: R513A, a low Global Warming Potential (GWP) refrigerant
- Certification: Safety certified to UL 60335-1, UL 60335-2-40 and CSA standards
- Drain: Internally mounted timed solenoid condensate drain
- Enclosure: Industrial-grade powder coated finish
- Filtration: Zeks Grade G and H pre and post filters, shipped loose
- Fan speed control: Variable speed fan adjusts automatically to low load conditions for a consistent dew point
- Condition: New
- Weight: 94 lbs
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
75NCJ
Product Videos
Custom Field
Capacity 75 SCFM
In/Out Air Connect Size 3/4” NPT
Drain Connection 1/4” Nylon Tube
Max Operating Pressure 200 PSI
Refrigerant Compressor 1/3 HP
Operating .82 kW
Voltages 115V / 1ph, 60hz & 230V / 1ph, 60hz
Length 19.7 in
Width 15.2 in
Height 24.3 in
Weight 94 lbs
Timed Solenoid Drain Included
Pre & After Filters Included
Microprocessor Controller Included
