Product Description

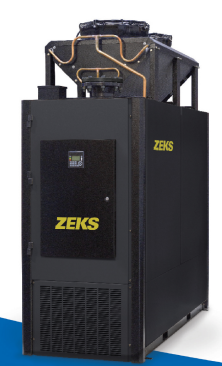

The Zeks 3000NCG is a 3,000 SCFM NC Series non-cycling refrigerated air dryer. The NC Series covers 1,800-3,000 SCFM and is designed for energy efficiency, reliability, a consistent dew point and a minimal footprint. It delivers clean, dry compressed air suitable for demanding applications.
Details
- Part number: 3000NCG
- Brand: Zeks
- Series: NC Series non-cycling refrigerated dryer
- Capacity: 3,000 SCFM
- Heat exchanger: Proprietary integrated design for energy efficiency and reduced space requirements
- Condenser: Microchannel air-cooled or top-mounted water-cooled
- Refrigeration compressor: Scroll compressor(s) for quiet, balanced operation
- Controller: Microprocessor with refrigeration readings, RS-485 communications, maintenance alerts, alarm annunciation, fault log and drain status/test
- Refrigerant: R-410A, zero ODP, minimal charge
- Filtration: Integrated dual-element filter removes particles as small as 0.1 micron, eliminating the need for external filtration
- Hot gas valve: Electronic, with automatic seasonal adjustment and tighter dew point control than mechanical valves
- Condition: New
- Weight: 2,487 lbs
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
3000NCG
Product Videos
Custom Field
Capacity 3,000 SCFM
In/Out Air Connect Size 6” FLG
Differential Pressure 3.6 psid
Max Operating Pressure 200 PSIG
Refrigerant Compressor 20.7 HP
Operating 12.9 kW
Voltages 460V-3ph-60hz, 380V-3ph-50hz
Refrigerant Type R410A
Length 91.5 in
Width 34 in
Height 93 in
Weight 2487 lbs
