Product Description

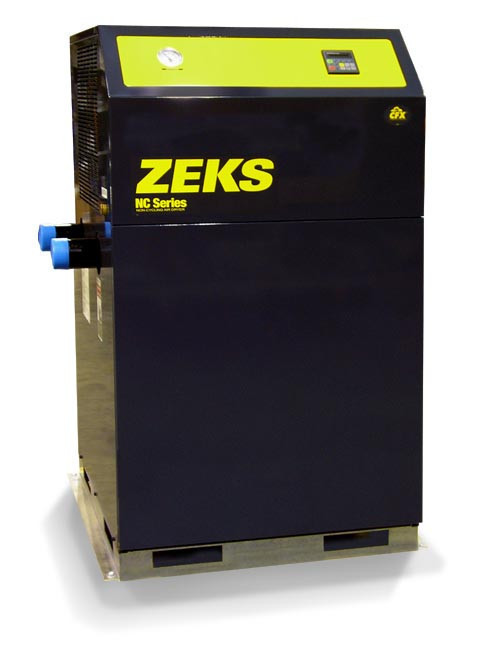

The Zeks 1800NCG is a 1,800 SCFM NC Series non-cycling refrigerated air dryer. It uses a proprietary integrated heat exchanger, scroll compressor refrigeration and built-in filtration to deliver clean, dry compressed air with a consistent dew point in a compact footprint.
Details
- Brand: Zeks
- Part number: 1800NCG
- Series: NC Series non-cycling refrigerated dryer
- Rated flow: 1,800 SCFM
- Heat exchanger: Proprietary integrated design for energy efficiency and minimal space requirements
- Condenser: Microchannel air-cooled or top-mounted water-cooled
- Refrigeration compressor: Scroll type for quiet, balanced operation
- Controller: Microprocessor control with refrigeration readings, RS-485 communications, maintenance alerts, alarm annunciation, fault log and drain status/test
- Refrigerant: R-410A (zero ODP), minimal charge
- Filtration: Integrated dual-element filter removing particles as small as 0.1 micron
- Hot gas valve: Electronic, with automatic seasonal adjustment
- Condition: New
- Weight: 2,133 lbs
- Ships from: San Juan, Texas
Sold by ProParts, Inc. Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
1800NCG
Product Videos
Custom Field
Capacity 1,800 SCFM
In/Out Air Connect Size 6” FLG
Differential Pressure 3.6 psid
Max Operating Pressure 200 PSI
Refrigerant Compressor 9.6 HP
Operating 9.4 kW
Voltages 460V-3ph-60hz, 380V-3ph-50hz
Refrigerant Type R410A
Length 91.5 in
Width 34 in
Height 93 in
Weight 2133 lbs
