Product Description

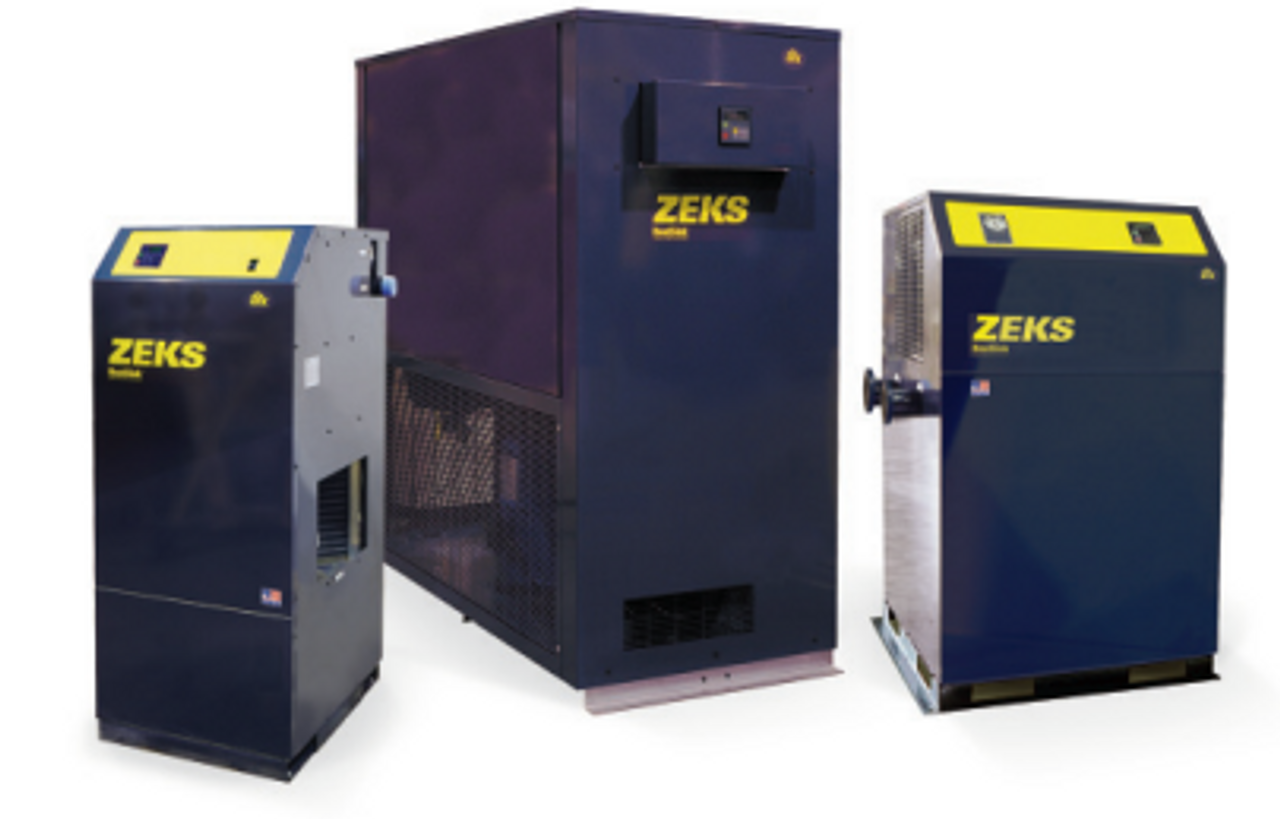

The Zeks 11SCFX is a new 475 SCFM high pressure cycling refrigerated air dryer rated for a 680 psig maximum operating pressure. It delivers a 38°F pressure dew point using stainless steel CFX® heat exchangers and Digital Performance Control (DPC™). Sold by ProParts, Inc., with technical support available by phone from ProParts compressor technicians.
Details
- Brand: Zeks
- Part number: 11SCFX
- Capacity: 475 SCFM
- Pressure dew point: 38°F
- Maximum operating pressure: 680 psig
- Fully hermetic refrigerant compressor
- Air-cooled condenser
- High pressure moisture separator
- Refrigerant suction pressure gauge
- High pressure solenoid condensate drain
- NEMA 1 electrical
- Fully enclosed, powder coated cabinet
- Optional features: water-cooled condenser, NEMA 4 electrical, complete stainless steel air circuit
- Condition: New
- Weight: 635 lbs
- Ships from: San Juan, Texas
Part number cross-reference
Zeks 11SCFX
Product Videos
Custom Field
Capacity SCFM 475 SCFM
In/Out Air Connect Size 2” MPT
Max Operating Pressure 680 PSI
Operating 2.54 kW
Voltages 460V-3ph-60hz, 380V/420V-3ph-50hz, 230V/280V-3ph-60hz, 240V/220V-3ph-50hz
Length 30 in
Width 28 in
Height 58 in
Weight 635 lbs
Refrigerant Type R404A
Drain Connect 1/4" FPT
Refrig. Comp. 2 HP
