Product Description

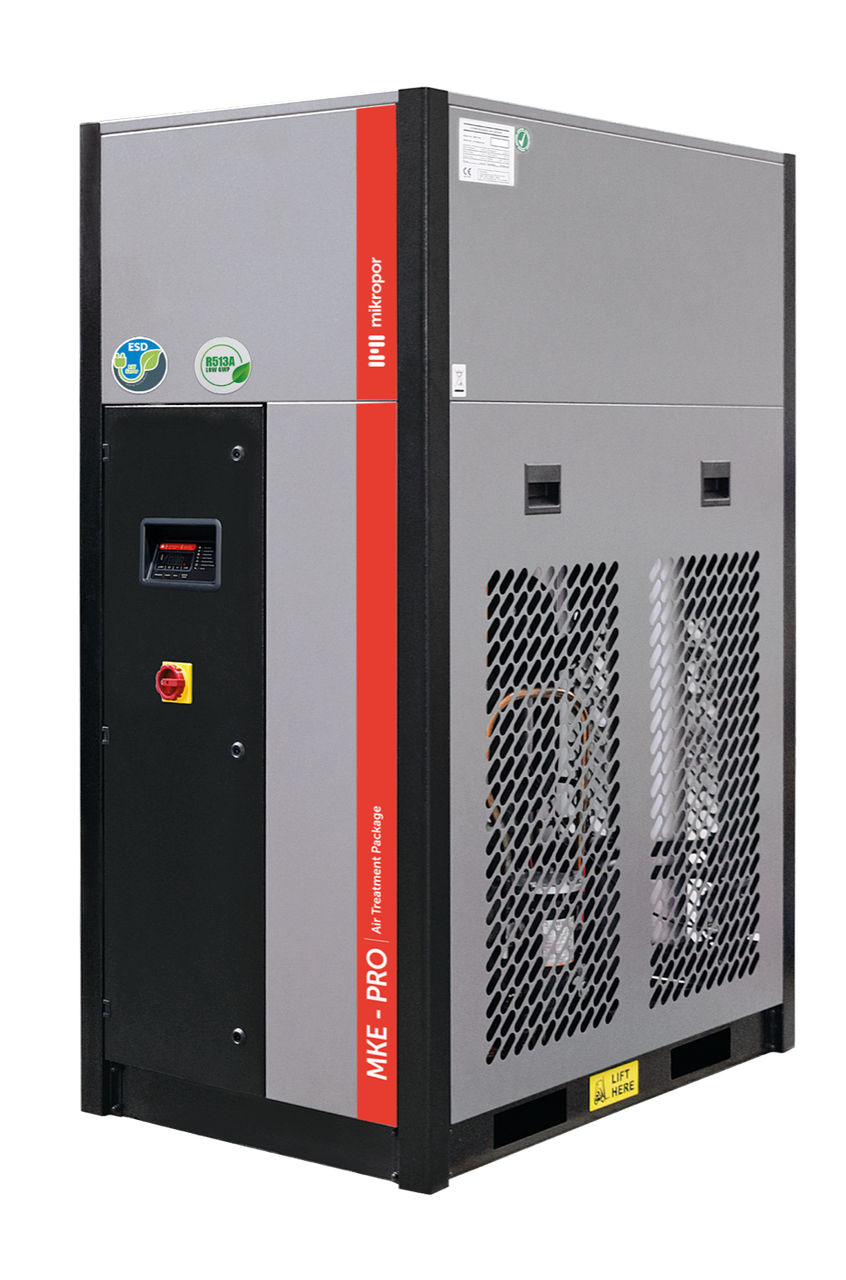

The Mikropor MK-US-PRO refrigerated air dryer, model MKUS-PRO-1500 AC 575/3/60 (part number MKUS-PRO-1500-575-3-60), is a new non-cycling dryer for compressed air systems. This unit is configured for 575 volt, 3 phase, 60 Hz power.
It is sold by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Series: MK-US-PRO
- Model: MKUS-PRO-1500 AC
- Part number / SKU: MKUS-PRO-1500-575-3-60
- Electrical: 575/3/60
- Type: Refrigerated, non-cycling air dryer
- Condition: New
- Ships from: San Juan, Texas
Part number cross-reference
MKUS-PRO-1500-575-3-60, MKUS-PRO-1500 AC 575/3/60, MK-PRO-190-NPT-ZL-ESD3-575360AC7012F-MKR.
Product Videos
Custom Field
Product Line Mikropor MK-US-PRO Refrigerated Air Dryer
Air Connection 4" Flange
Max Working Temp 012°F
Capacity (FAD) 1500 scfm
Voltage 575V/3Ph/60Hz
Replacement Filter Kit MKO 5850 KIT
Pressure Drop 1.9 psig
Controller ESD-3
Dimensions (L x W x H) 62 x 39 x 80 in
Type Refrigerated Cycling Dryer (Digital ECO)
Max Working Pressure 232 psig
Min Working Pressure 58 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 122°F
Refrigerant R-513a
Cooling Air-Cooled
