Product Description

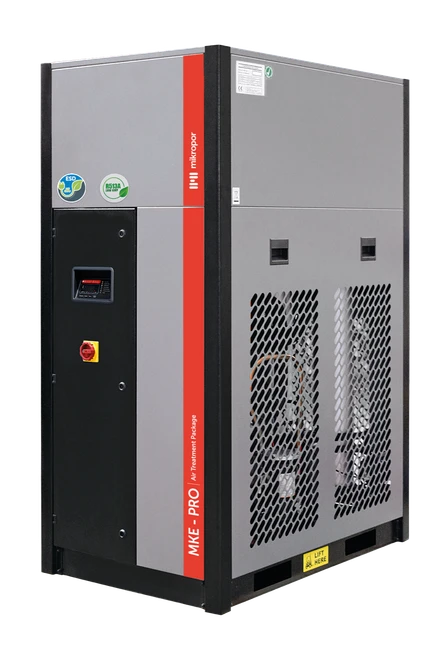

The Mikropor MK-US-PRO refrigerated air dryer, model MKUS-PRO-2750 AC 575/3/60 (part number MKUS-PRO-2750-575-3-60), is a non-cycling refrigerated dryer configured for 575 volt, 3-phase, 60 Hz AC power. This unit is supplied new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Order by part number to match the correct voltage configuration for your installation.
Details
- Brand: Mikropor
- Series: MK-US-PRO refrigerated air dryer
- Model: MKUS-PRO-2750 AC 575/3/60
- Part number / SKU: MKUS-PRO-2750-575-3-60
- Electrical: 575V / 3-phase / 60 Hz AC
- Type: Non-cycling refrigerated dryer
- Condition: New
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKUS-PRO-2750-575-3-60 is also referenced as MKUS-PRO-2750 AC 575/3/60 and MK-PRO-220-NPT-ZL-ESD3-575360AC7012NFMKR.
Product Videos
Custom Field
Product Line Mikropor MK-US-PRO Refrigerated Air Dryer
Air Connection 6" Flange
Capacity (FAD) 2750 scfm
Voltage 575V/3Ph/60Hz
Replacement Filter Kit Externally Connected
Pressure Drop 2.5 psig
Controller ESD-3
Dimensions (L x W x H) 86 x 42 x 84 in
Type Refrigerated Cycling Dryer (Digital ECO)
Max Working Pressure 232 psig
Min Working Pressure 58 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 122°F
Refrigerant R-513a
Cooling Air-Cooled
