Product Description

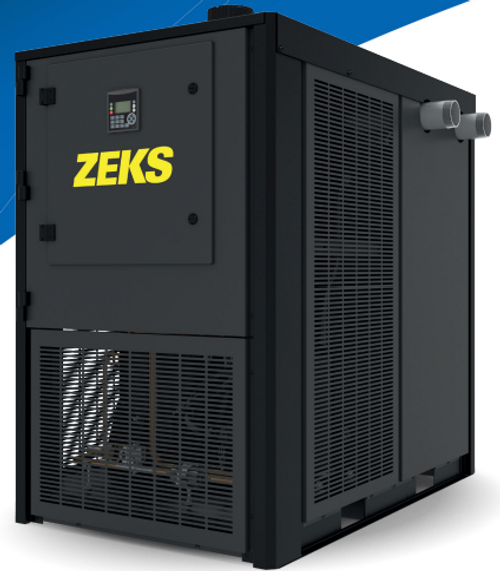

The Zeks 500HSG-460V (part number 500HSG) is a new 500 SCFM HeatSink refrigerated cycling air dryer. It runs automatically through a panel-mounted digital controller with an illuminated display. ProParts, Inc. ships it from San Juan, Texas, and our compressor technicians offer technical support by phone.
Digital controller
- Displays dryer operating status and energy savings
- Condensate drain timing and test interface
- Visual indication of faults, drain open and condenser fan operation
Standard features
- Multi-layer heat exchanger with integrated precooler/reheater and low pressure drop
- Pre and post filtration with ZEKS Grade G and H filters
- R-513A refrigerant with a small charge volume
- Timed solenoid condensate drain, adjustable from the controller
- Filterstop/strainer drain connection that is easy to clean
- Certified to UL standards 60335-1 and 60335-2-40
- Galvanized internal structure and powder-coated enclosure
- Note: the standard 3-prong plug with ground connection applies only to 10-150 cfm models
Details
- Brand: Zeks
- Part number: 500HSG
- Model: 500HSG-460V
- Capacity: 500 SCFM
- Condition: New
- Weight: 1,341 lb
- Ships from: San Juan, Texas
Part number cross-reference
500HSG, 500HSG-460V
Product Videos
Custom Field
Capacity SCFM 500 SCFM
In/Out Air Connect Size 3” MNPT
Refrige. type R-513A
Voltage 460V / 3ph, 60hz
Length 57.5 in
Width 41.4 in
Height 59.8 in
Weight 1341 lbs
Timed Solenoid Drain Included
Pre & After Filters Included
DPC Controller Included
Modbus TCP/IP Included
Max. Working Pressure 200 PSI
