Product Description

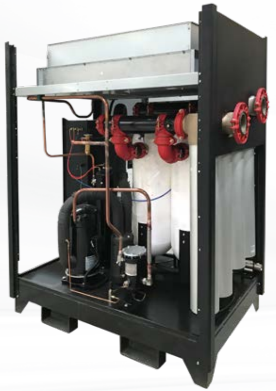

The Mikropor MK-US-75 is a 75 scfm cycling refrigerated compressed air dryer from the Mikropor MK-US Series. It removes moisture from compressor discharge air, which can otherwise cause system problems and affect product quality. ProParts, Inc. ships this new unit from San Juan, Texas, with technical support available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Part number: MK-US-75
- Series: MK-US Series cycling refrigerated dryer
- Rated flow: 75 scfm
- Refrigerant: R134a standard; R513a optional
- Condenser fan: controlled by pressure switches
- Design notes: low pressure drop and quick start time
- Condition: New
- Weight: 121 lbs
- Ships from: San Juan, Texas
Applications
- Food production, dairies and breweries
- Chemical plants and the pharmaceutical industry
- Clean-room technology and microchip production
- Paint spraying, powder coating and packaging
- Control and instrument air, process air and conveying air
- Sand and shot blasting and general air work
Part number cross-reference
MK-US-75 (also searched as MKUS75)
Product Videos
Custom Field
Capacity 75 scfm
Voltage 115V/1Ph/60Hz
Connection Size 3/4in NPT
Filter Quality and Type 1*GKON155X+1*GKON155Y
Replacement Filter Element Kit MKON155 KIT
Pressure Kit 2.0 psi
Control Type DigiPro
Length 17.8 in
Width 18.6 in
Height 32.8 in
Weight 121 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 75 cfm
Air Connection 3/4" NPT
Replacement Filter Kit MKON155 KIT
Pressure Drop 2.0 psig
Controller DigiPro
Dimensions (L x W x H) 17.8 x 18.6 x 32.8 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
