Product Description

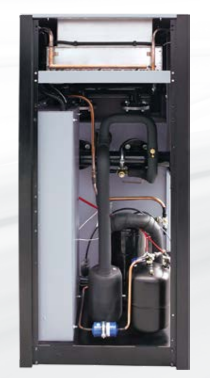

The Mikropor MK-US-125 is a 125 scfm cycling refrigerated compressed air dryer from the Mikropor MK-US Series. It removes moisture from compressor discharge air, which can otherwise cause system faults and affect production quality. Applications include food production, dairies, breweries, chemical plants, the pharmaceutical industry, paint spraying, powder coating, packaging, control and instrument air, sand and shot blasting, and general process air.
Details
- Brand: Mikropor
- Part number: MK-US-125
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 125 scfm
- Refrigerant: R134a; R513a optional
- Features: low pressure drop design, quick start and reaction time, pressure switches control the condenser fan motor
- Condition: New
- Weight: 178 lbs
- Ships from: San Juan, Texas
- Sold by ProParts, Inc., with technical support available by phone from ProParts compressor technicians
Part number cross-reference
MK-US-125 (also searched as MKUS125).
Product Videos
Custom Field
Capacity 125 scfm
Voltage 115V/1Ph/60Hz
Connection Size 1-1/2in NPT
Filter Quality and Type 1*GKON405X+1*GKON405Y
Replacement Filter Element Kit MKON405 KIT
Pressure Kit 2.0 psi
Control Type DigiPro
Length 19.9 in
Width 21.9 in
Height 34.4 in
Weight 178 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 125 cfm
Air Connection 1-1/2" NPT
Replacement Filter Kit MKON405 KIT
Pressure Drop 2.0 psig
Controller DigiPro
Dimensions (L x W x H) 19.9 x 21.9 x 34.4 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
