Product Description

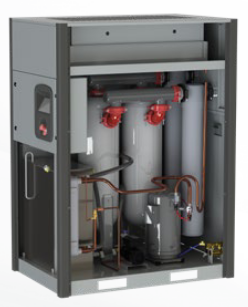

The Mikropor MCY-US-3000 is a 3000 scfm MCY-US Series thermal mass true cycling refrigerated dryer that removes moisture from compressed air. Moisture or contamination in compressor discharge air can cause problems with production equipment, lower productivity and affect the quality of the finished product. The MCY Series has a compact design with pre and post filtration built into the dryer cabinet, which saves installation labor and cost.
Details
- Brand: Mikropor
- Part number: MCY-US-3000
- Series: MCY-US Series
- Type: Thermal mass true cycling refrigerated dryer
- Capacity: 3000 scfm
- Refrigerant: R134a, suitable for low and high temperature applications and able to run at high ambient temperatures
- Construction: Insulated heat exchangers and refrigeration circuit, oversized condensers for high ambient temperatures
- Filtration: Pre and post filtration built into the cabinet
- Condition: New
- Weight: 2,123 lbs
- Ships from: San Juan, Texas
- Support: ProParts compressor technicians are available by phone for technical support
Part number cross-reference
MCY-US-3000 (store SKU MCY-US-3000)
Product Videos
Custom Field
Air Flow Capacity 3000 scfm
Voltage 460V/3Ph/60Hz
Connection Size 6in Flange
Filter Quality and Type Externally Connected - F-US 3800 X/Y
Length 86.2 in
Width 41.9 in
Height 79.7 in
Weight 2123 lbs
Product Line Mikropor MCY-US Cycling Refrigerated Air Dryer
Capacity (FAD) 3000 scfm
Air Connection 6" Flange
Replacement Filter Kit 8 x M1200 KIT
Dimensions (L x W x H) 86.1 x 41.8 x 79.7 in
Type Thermal Mass / Cycling Refrigerated Dryer
Max Working Pressure 230 psig
Min Working Pressure 60 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 122°F
Refrigerant R-513a
Cooling Air-Cooled
