Product Description

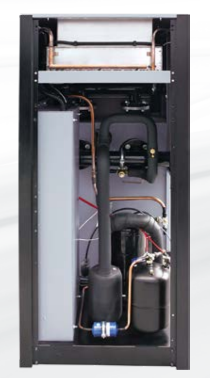

The Mikropor MK-US-2750 is a 2750 scfm cycling refrigerated compressed air dryer from the Mikropor MK-US Series. It removes moisture from compressor discharge air, which can otherwise cause system errors, reduce productivity and affect the quality of finished products. The dryer uses R134a refrigerant, with R513a available as an option.
Details
- Brand: Mikropor
- Part number: MK-US-2750
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 2750 scfm
- Refrigerant: R134a standard; R513a optional
- Low pressure drop design and quick start and reaction time
- Pressure switches control the condenser fan motor to save energy and keep operation at desired conditions
- Condition: New
- Weight: 1500 lbs
- Ships from: San Juan, Texas
- Technical support available by phone from ProParts compressor technicians
Applications
Food production, dairies, breweries, conveying air, chemical plants, clean-room technology, pharmaceuticals, weaving machines, photo labs, paint spraying, powder coating, packaging, control and instrument air, sand and shot blasting, microchip production, optics, process air and general air work.
Part number cross-reference
MK-US-2750 (also searched as MKUS2750).
Product Videos
Custom Field
Capacity 2750 scfm
Voltage 460V/3Ph/60Hz
Connection Size 6in Flange
Filter Quality and Type Extrenally Connected - F-US 3800 X/Y**
Replacement Filter Element Kit Not Included
Pressure Kit 2.5 psi
Control Type ESD-3
Length 86.1 in
Width 41.8 in
Height 79.7 in
Weight 1500 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 2750 cfm
Air Connection 6" Flange
Replacement Filter Kit Externally Connected
Pressure Drop 2.5 psig
Controller ESD-3
Dimensions (L x W x H) 86.1 x 41.8 x 79.7 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
