Product Description

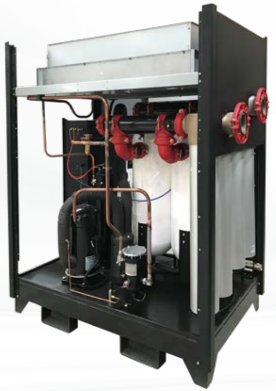

The Mikropor MK-US-2350 is a 2350 scfm MK-US Series cycling refrigerated compressed air dryer. It removes moisture from compressor discharge air, which can otherwise cause system errors, lower productivity and affect the quality of finished products. ProParts, Inc. ships this new unit from San Juan, Texas, and its compressor technicians are available by phone for technical support.
Details
- Brand: Mikropor
- Part number: MK-US-2350
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 2350 scfm
- Refrigerant: R134a; R513a optional
- Low pressure drop design to reduce compressor power use
- Quick start and reaction time
- Pressure switches control the condenser fan motor to save energy
- Condition: New
- Weight: 1014 lbs
- Ships from: San Juan, Texas
Applications
Food production, dairies, breweries, chemical plants, pharmaceutical, clean-room technology, paint spraying, powder coating, packaging, control and instrument air, sand and shot blasting, microchip production, optics and general process air.
Part number cross-reference
MK-US-2350 (also searched as MKUS2350, MK US 2350).
Product Videos
Custom Field
Capacity 2350 scfm
Voltage 460V/3Ph/60Hz
Connection Size 4in Flange
Filter Quality and Type 1*GKON5850X+1*GKON5850Y
Replacement Filter Element Kit MKON2700 KIT
Pressure Kit 2.8 psi
Control Type ESD-3
Length 57.8 in
Width 42.4 in
Height 76.0 in
Weight 1014 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 2350 cfm
Air Connection 4" Flange
Replacement Filter Kit MKON2700 KIT
Pressure Drop 2.8 psig
Controller ESD-3
Dimensions (L x W x H) 57.8 x 42.4 x 76.0 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
