Product Description

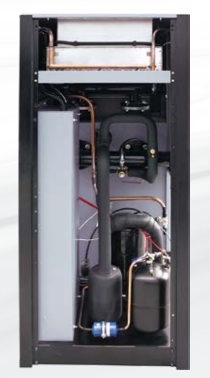

The Mikropor MK-US-15 is a 15 scfm cycling refrigerated compressed air dryer from the MK-US Series. It removes moisture from compressor discharge air, which can otherwise cause system problems and affect production and product quality. This unit is new and ships from San Juan, Texas.
Details
- Brand: Mikropor
- Part number: MK-US-15
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 15 scfm
- Refrigerant: R134a; R513a optional
- Design features: low pressure drop, quick start and reaction time, and pressure switches that control the condenser fan motor
- Condition: New
- Weight: 71 lbs
- Ships from: San Juan, Texas
Applications
- Food production, dairies and breweries
- Chemical plants, pharmaceutical industry and clean-room technology
- Paint spraying, powder coating and packaging
- Control and instrument air, process air and general air work
- Sand or shot blasting, weaving machines, photo labs, optics and microchip production
Sold by ProParts, Inc., serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MK-US-15 (store SKU MK-US-15)
Product Videos
Custom Field
Capacity 15 scfm
Voltage 115V/1Ph/60Hz
Connection Size 1/2in NPT
Filter Quality and Type 1*GKON55X+1*GKON55Y
Replacement Filter Element Kit MKON55 KIT
Pressure Kit 1.5 psi
Control Type DigiPro
Length 14.6 in
Width 14.5 in
Height 27.8 in
Weight 71 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 15 cfm
Air Connection 1/2" NPT
Replacement Filter Kit MKON55 KIT
Pressure Drop 1.5 psig
Controller DigiPro
Dimensions (L x W x H) 14.6 x 14.5 x 27.8 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
