Product Description

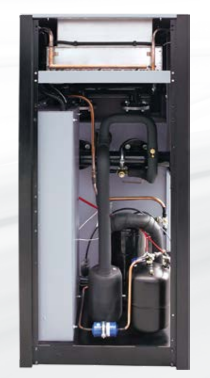

The Mikropor MK-US-10 is a 10 scfm cycling refrigerated compressed air dryer from the Mikropor MK-US Series. It removes moisture from compressed air leaving the compressor, which can otherwise cause system errors, lower productivity and affect the quality of finished products. ProParts, Inc. supplies this dryer new and ships it from San Juan, Texas.
Details
- Brand: Mikropor
- Part number: MK-US-10
- Series: MK-US Series cycling refrigerated dryer
- Capacity: 10 scfm
- Refrigerant: R134a; R513a optional
- Condenser fan control: pressure switches control the condenser fan motor
- Design notes: low pressure drop, quick start and reaction time
- Condition: New
- Weight: 71 lbs
- Ships from: San Juan, Texas
- Support: technical support by phone from ProParts compressor technicians
Applications
Typical uses include food production, dairies, breweries, chemical plants, pharmaceutical work, clean-room technology, paint spraying, powder coating, packaging, control and instrument air, sand or shot blasting, microchip production, optics, process air and general air work.
Part number cross-reference
MK-US-10 (also written MKUS10)
Product Videos
Custom Field
Capacity 10 scfm
Voltage 115V/1Ph/60Hz
Connection Size 1/2in NPT
Filter Quality and Type 1*GKON55X+1*GKON55Y
Replacement Filter Element Kit MKON55 KIT
Pressure Kit 1.4 psi
Control Type DigiPro
Length 14.6 in
Width 14.5 in
Height 27.8 in
Weight 71 lbs
Product Line Mikropor MK-US Cycling Refrigerated Air Dryer
Capacity (FAD) 10 cfm
Air Connection 1/2" NPT
Replacement Filter Kit MKON55 KIT
Pressure Drop 1.4 psig
Controller DigiPro
Dimensions (L x W x H) 14.6 x 14.5 x 27.8 in
Type Digital Cycling Refrigerated Dryer
Max Working Pressure 232 psig
Max Inlet Temperature 140°F
Refrigerant R-513a
Cooling Air-Cooled
