Product Description

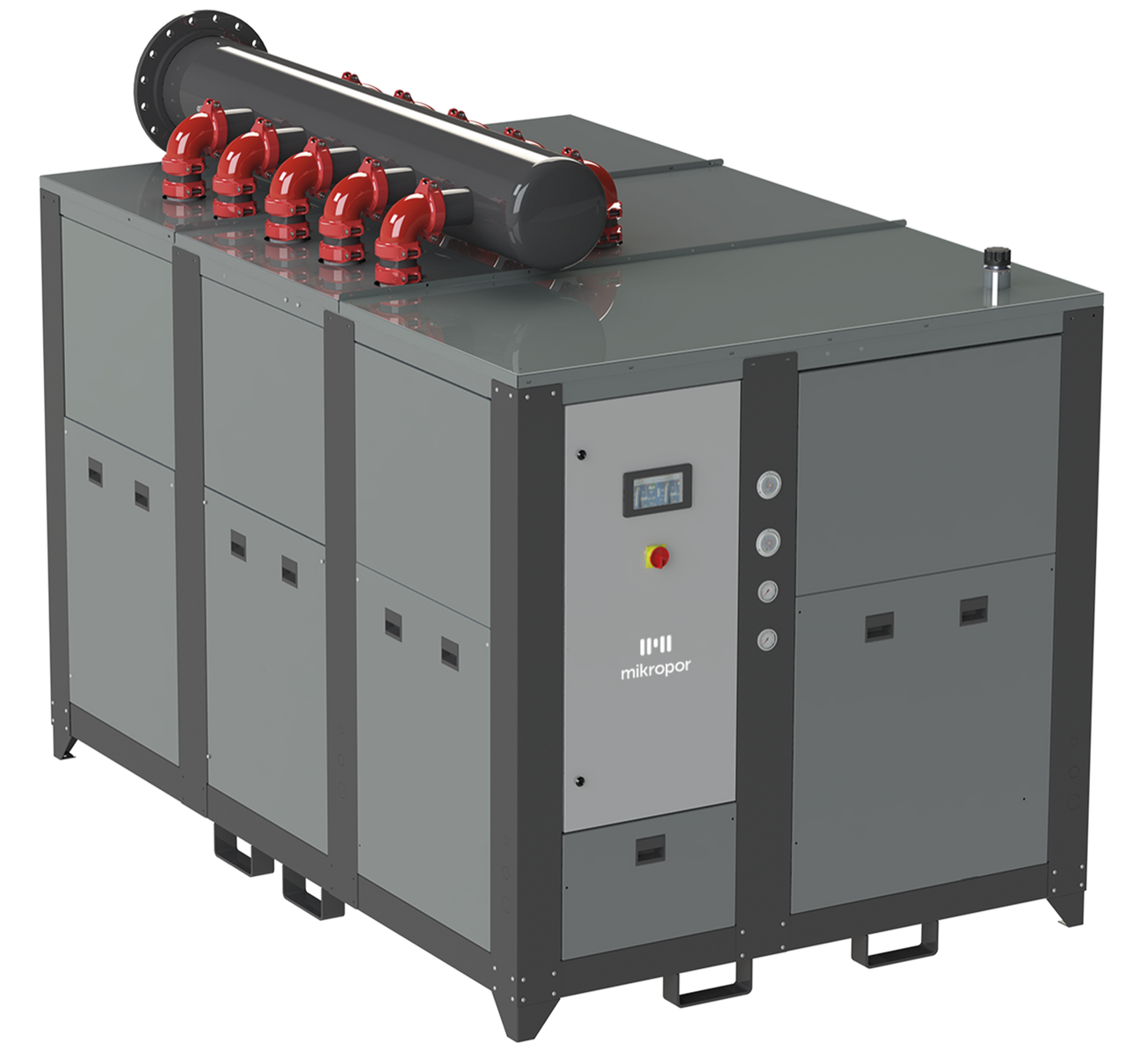

The Mikropor MTD Turbo Refrigerated Air Dryer, model MTD-US-12500 WC 460V (part number MTD-US-12500-WC-460V), is a new refrigerated dryer from Mikropor's MTD Turbo line. It is sold by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
See the recommended and optional filters listed below for use with this dryer.
Details
- Brand: Mikropor
- Series: MTD Turbo
- Model: MTD-US-12500 WC 460V
- Part number: MTD-US-12500-WC-460V
- Category: Refrigerated Dryers
- Condition: New
- Listed shipping weight: 1 lb
- Ships from: San Juan, Texas
- Support: Technical support available by phone from ProParts compressor technicians
Part number cross-reference
MTD-US-12500-WC-460V, also listed as Mikropor model MTD-US-12500 WC 460V.
Product Videos
Custom Field
Product Line Mikropor MTD-US High-Capacity Turbo Refrigerated Dryer
Air Connection 12" Flange
Voltage 460V
Capacity (FAD) 12500 scfm
Cooling Water Connection 2" Flange
Refrigerant R-407c
Dimensions (L x W x H) 130 x 81 x 94 in
Type High-Capacity Turbo Refrigerated Dryer
Power 460V/3Ph/60Hz
Pressure Drop < 1 psig
Drain Connection 1" NPT
Max Working Pressure 150 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 120°F
Cooling Water-Cooled
