Product Description

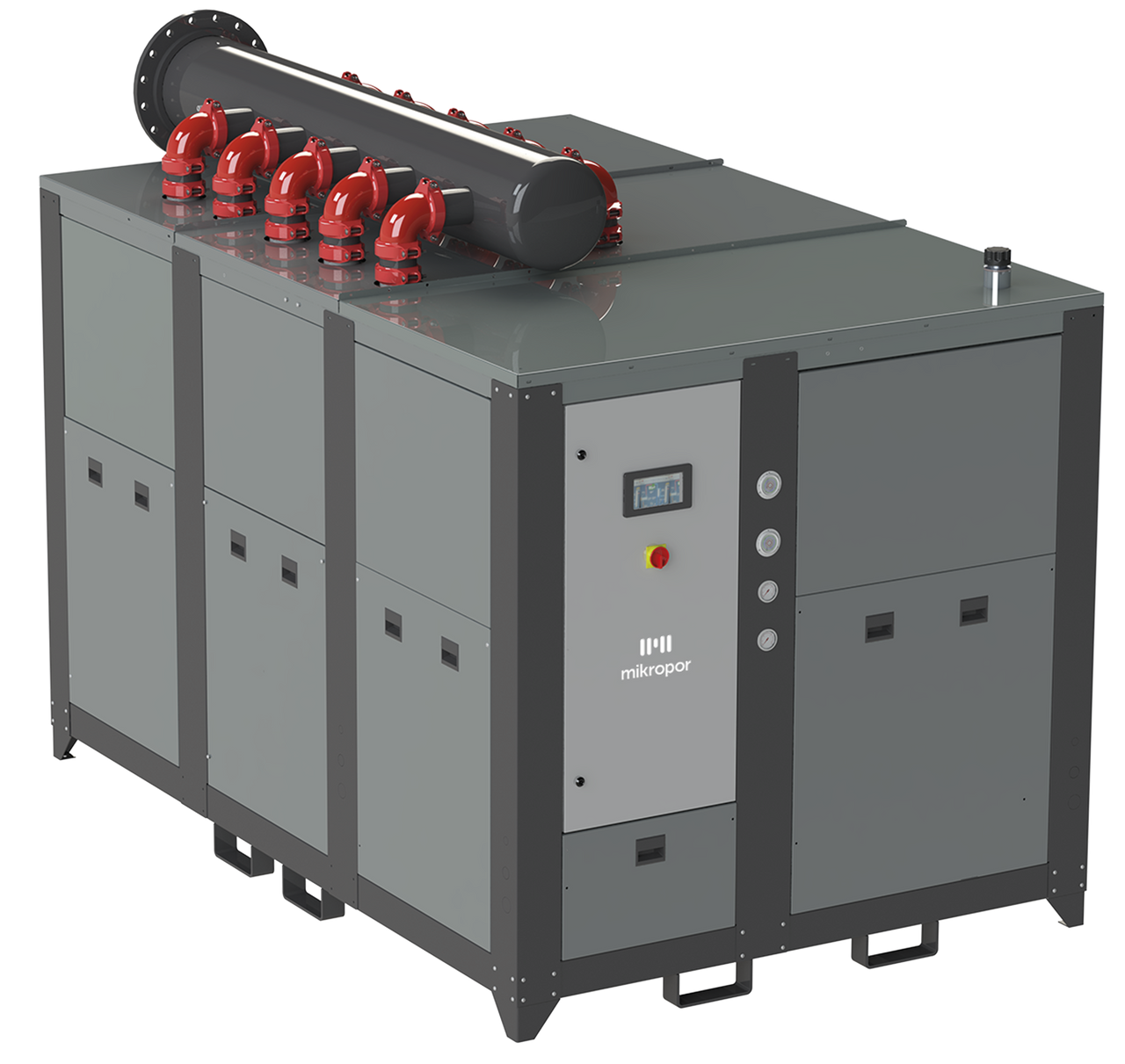

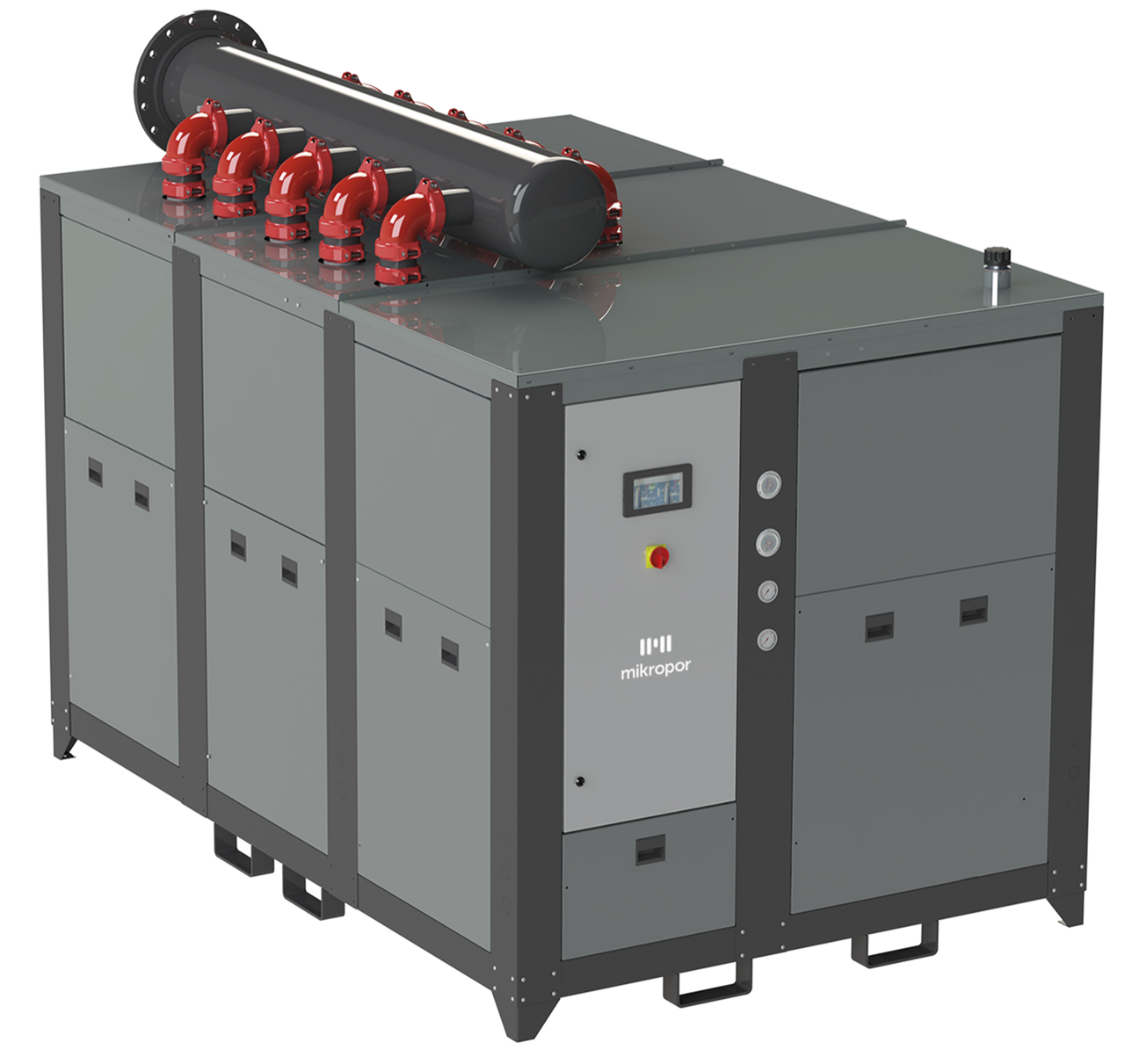

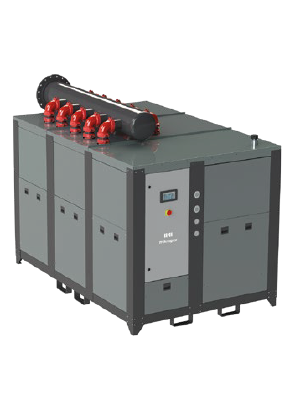

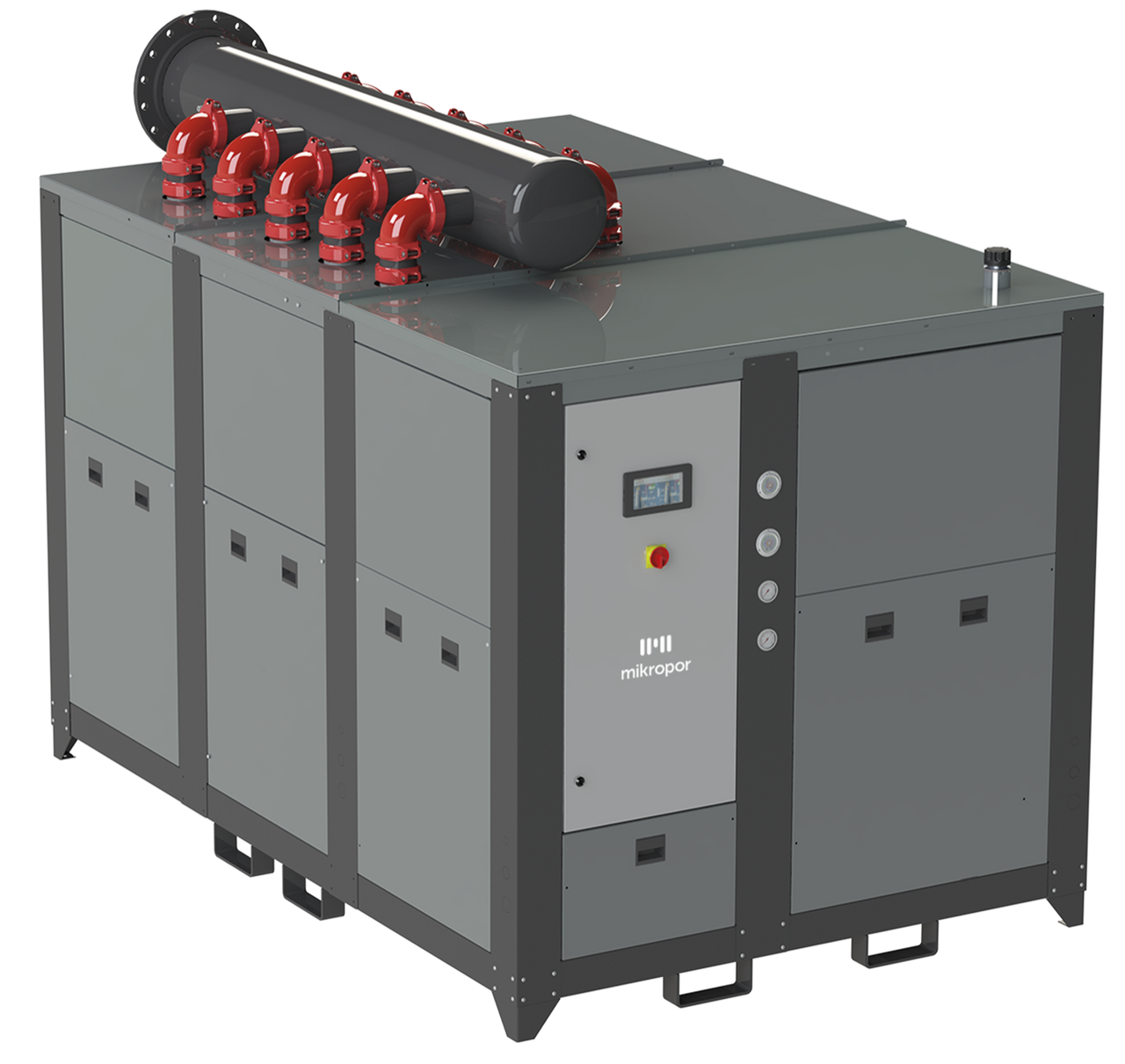

The Mikropor MTD-US-12500-460V is an MTD Turbo refrigerated air dryer, model MTD-US-12500, configured for AC 460V power. It is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. See the recommended and optional filters listed below for use with this dryer.
Details
- Brand: Mikropor
- Series: MTD Turbo
- Model: MTD-US-12500
- Voltage: AC 460V
- Part number / SKU: MTD-US-12500-460V
- Product type: Refrigerated air dryer
- Condition: New
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MTD-US-12500-460V (Mikropor model MTD-US-12500, AC 460V)
Product Videos
Custom Field
Product Line Mikropor MTD-US High-Capacity Turbo Refrigerated Dryer
Air Connection 12" Flange
Voltage 460V
Capacity (FAD) 12500 scfm
Cooling Water Connection 2" Flange
Refrigerant R-407c
Dimensions (L x W x H) 130 x 81 x 94 in
Type High-Capacity Turbo Refrigerated Dryer
Power 460V/3Ph/60Hz
Pressure Drop < 1 psig
Drain Connection 1" NPT
Max Working Pressure 150 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 120°F
Cooling Water-Cooled (air-cooled optional)
