Product Description

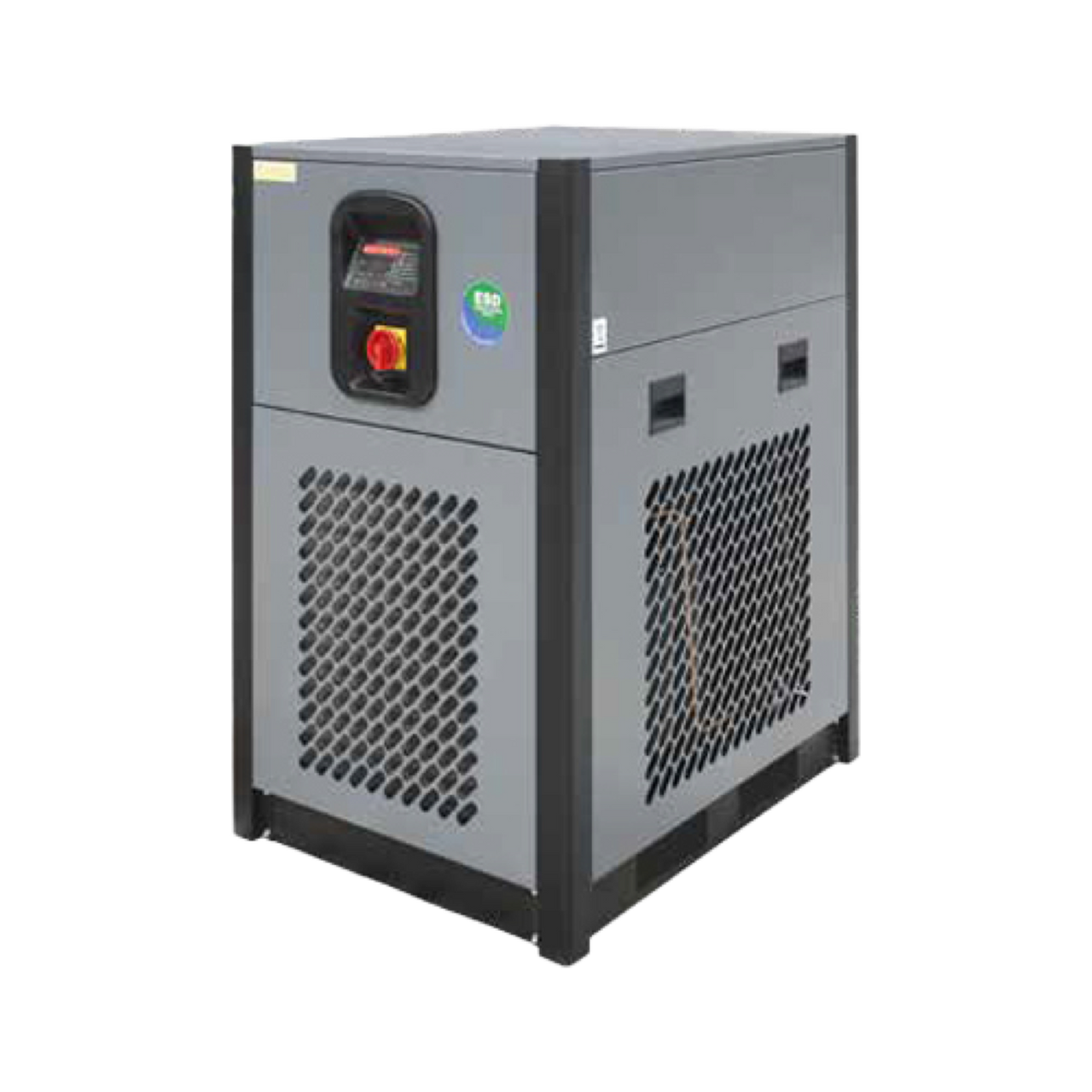

The Mikropor MK-HP High-Pressure Refrigerated Air Dryer, model MKHP-US-550 AC 460V (part number MKHP-US-550-460V), is a new refrigerated dryer from the Mikropor MK-HP high-pressure series. This listing is for the 460V AC version of the MKHP-US-550. It is sold by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-550
- Voltage: AC 460V
- Part number / SKU: MKHP-US-550-460V
- Category: Refrigerated Dryers
- Condition: New
- Ships from: San Juan, Texas
ProParts compressor technicians provide technical support by phone. You can call them to confirm the voltage and model before you order.
Part number cross-reference
MKHP-US-550-460V, also listed as Mikropor MKHP-US-550 AC 460V.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2" Flange ANSI Class 600
Voltage 230V/1Ph/60Hz
Capacity (FAD) 550 cfm
Dimensions (L x W x H) 37 x 29 x 46 in
Weight 507 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
