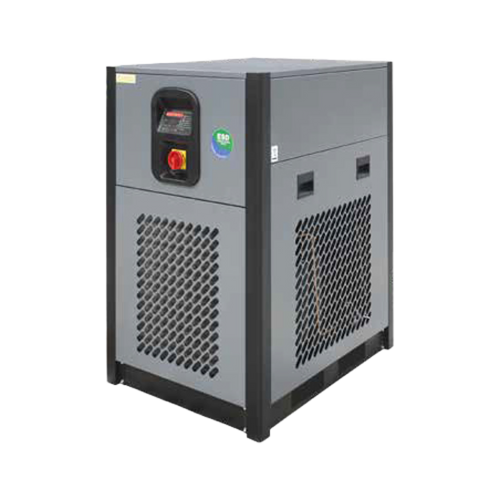

Mikropor MK-HP High-Pressure Refrigerated Air Dryer. Model MKHP-US-2350 AC 460V. MK-HP-3600-NPT-NB-DPR0-460360AC7012NFMKR.Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 3" Flange ANSI Class 600
Voltage 460V/3Ph/60Hz
Capacity (FAD) 2350 cfm
Dimensions (L x W x H) 67 x 39 x 59 in
Weight 1400 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
