Product Description

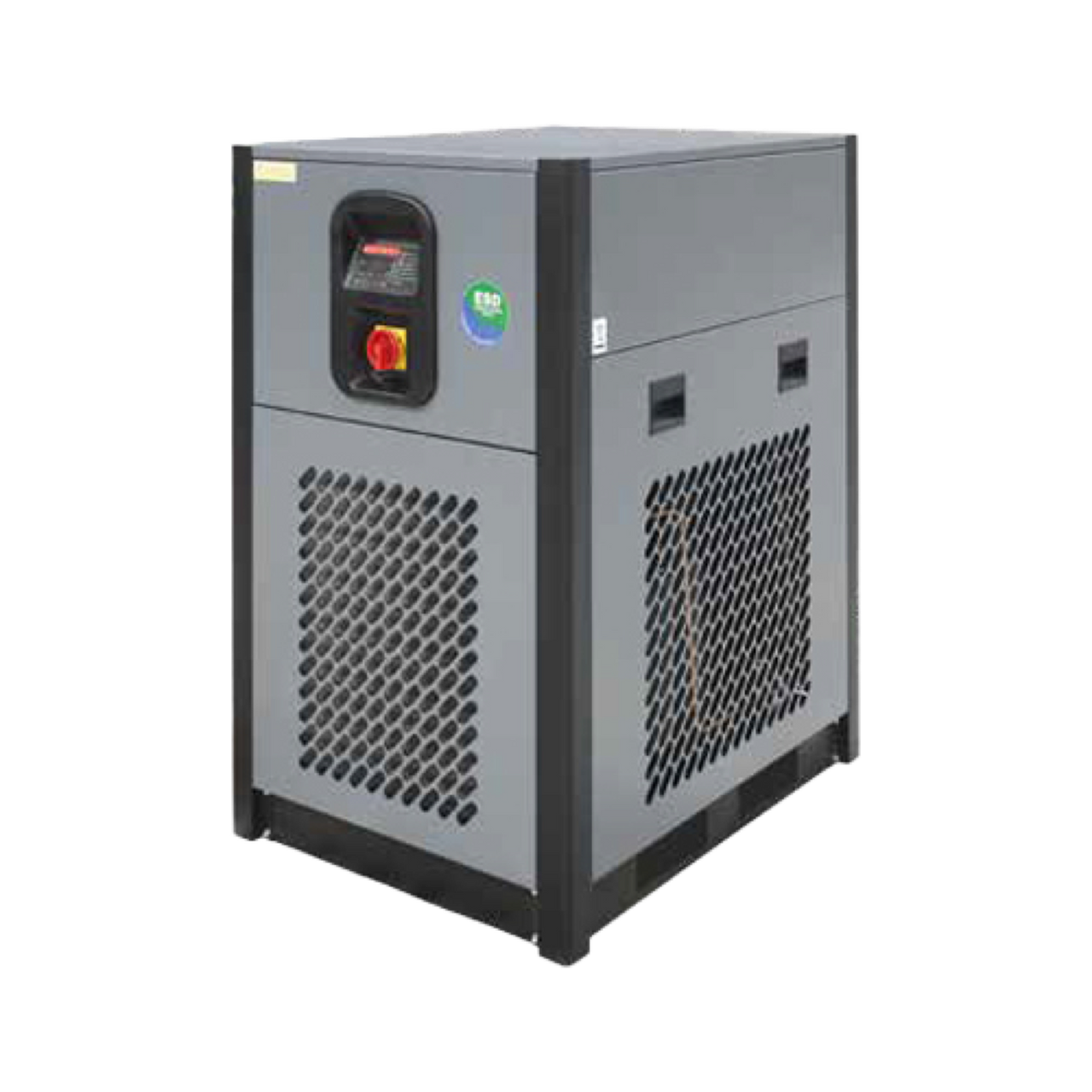

The Mikropor MK-HP high-pressure refrigerated air dryer, model MKHP-US-350 (part number MKHP-US-350-230-1-60), is a new refrigerated dryer configured for 230/1/60 electrical power. It is listed under Mikropor's MK-HP high-pressure dryer line.
ProParts, Inc. serves Texas and Northern Mexico as an authorized ELGi and Bobcat air compressor dealer, and technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-350
- Part number / SKU: MKHP-US-350-230-1-60
- Electrical: AC 230/1/60
- Condition: New
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-350-230-1-60 is also identified as MK-HP-775-NPT-NB-DPR0-230160-AC7012NFMKR.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 1-1/4" NPT
Capacity (FAD) 350 cfm
Voltage 230V/1Ph/60Hz
Dimensions (L x W x H) 27 x 20 x 39 in
Weight 148 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
