Product Description

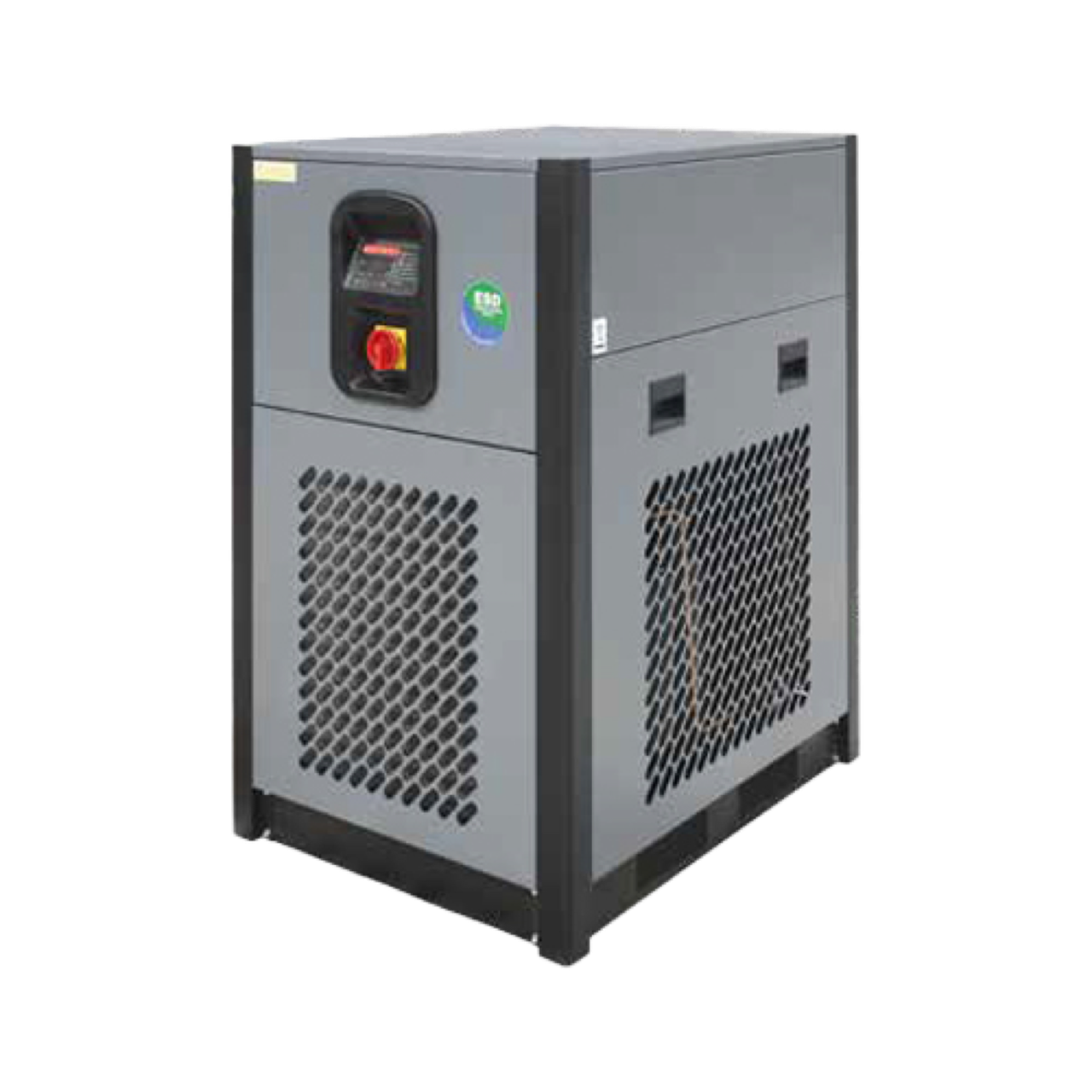

The Mikropor MKHP-US-470-230-1-60 is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-470, configured for AC 230/1/60 power. It is part of Mikropor's MK-HP line of high-pressure refrigerated dryers for compressed air systems. This unit is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-470
- Electrical: AC 230/1/60
- Part number / SKU: MKHP-US-470-230-1-60
- Condition: New
- Listed weight: 1 lb
- Category: Refrigerated Dryers
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKHP-US-470-230-1-60 is also listed as Mikropor configuration code MK-HP-1000-NPT-NB-DPR0-230160AC7012NFMKR.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2" Flange ANSI Class 600
Capacity (FAD) 470 cfm
Voltage 230V/1Ph/60Hz
Dimensions (L x W x H) 37 x 29 x 46 in
Weight 496 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
