Product Description

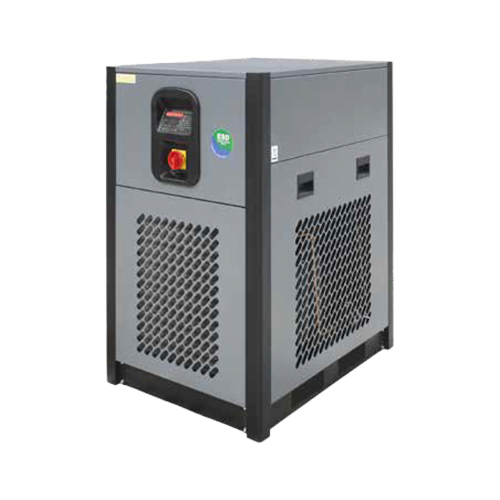

The Mikropor MKHP-US-1000-WC-575V is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-1000 WC 575V. It is listed in the Refrigerated Dryers category and is supplied new by ProParts, Inc.
ProParts, Inc. is an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico. Technical support is available by phone from ProParts compressor technicians.
Details
- Brand: Mikropor
- Product line: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-1000 WC 575V
- Part number / SKU: MKHP-US-1000-WC-575V
- Voltage designation: 575V
- Condition: New
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-1000-WC-575V, also written as MKHP-US-1000 WC 575V.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2-1/2" Flange ANSI Class 600
Voltage 460V/3Ph/60Hz
Capacity (FAD) 1000 cfm
Dimensions (L x W x H) 46 x 31 x 59 in
Weight 1025 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Water-Cooled
