Product Description

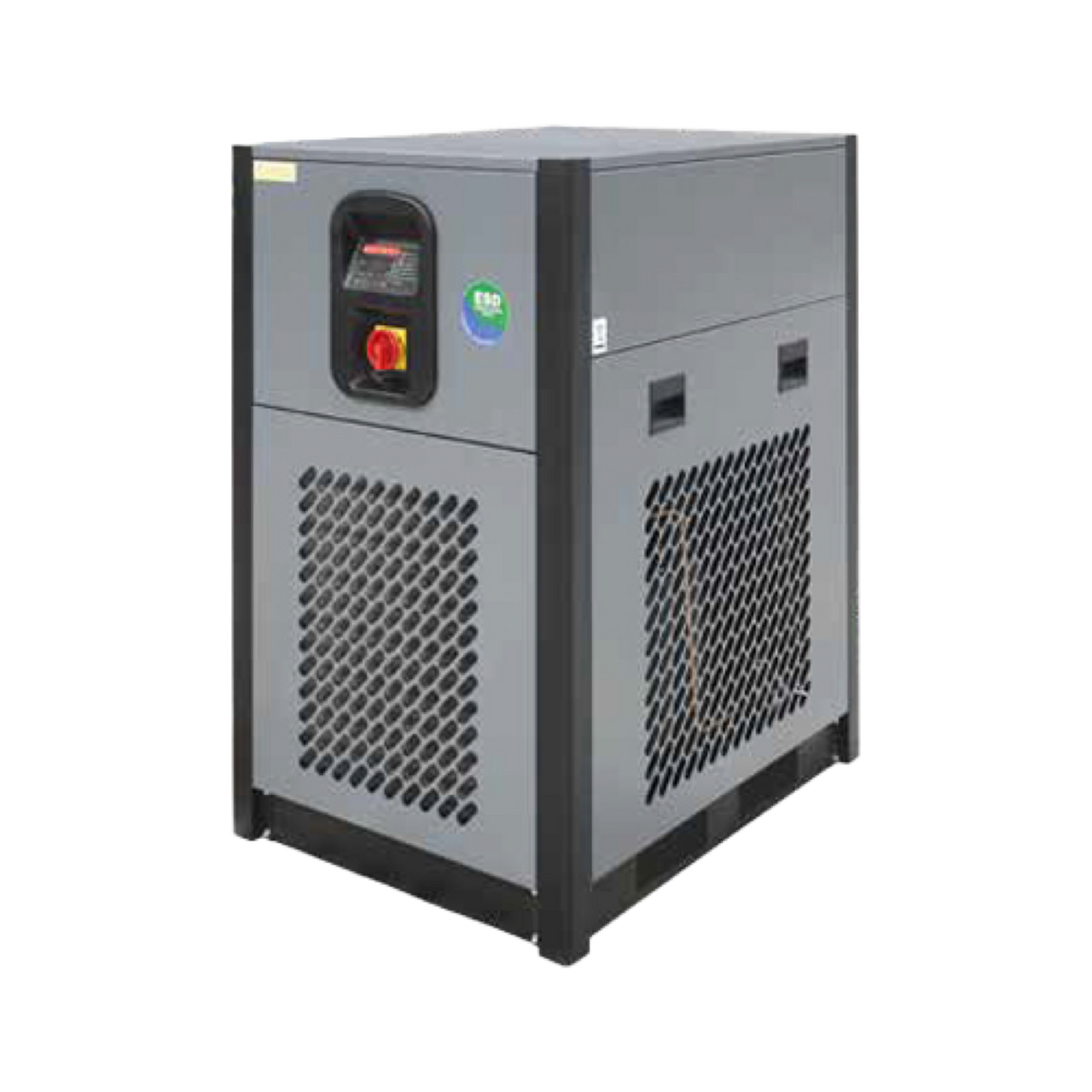

The Mikropor MKHP-US-1700-WC-575V is an MK-HP high-pressure refrigerated air dryer, model MKHP-US-1700 WC 575V. It is part of the Mikropor MK-HP line of high-pressure refrigerated dryers for compressed air systems. This unit is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Product line: MK-HP High-Pressure Refrigerated Air Dryer
- Model: MKHP-US-1700 WC 575V
- Part number / SKU: MKHP-US-1700-WC-575V
- Category: Refrigerated Dryers
- Condition: New
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKHP-US-1700-WC-575V, also listed as model MKHP-US-1700 WC 575V.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2-1/2" Flange ANSI Class 600
Voltage 460V/3Ph/60Hz
Capacity (FAD) 1700 cfm
Dimensions (L x W x H) 46 x 31 x 59 in
Weight 1224 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Water-Cooled
