Product Description

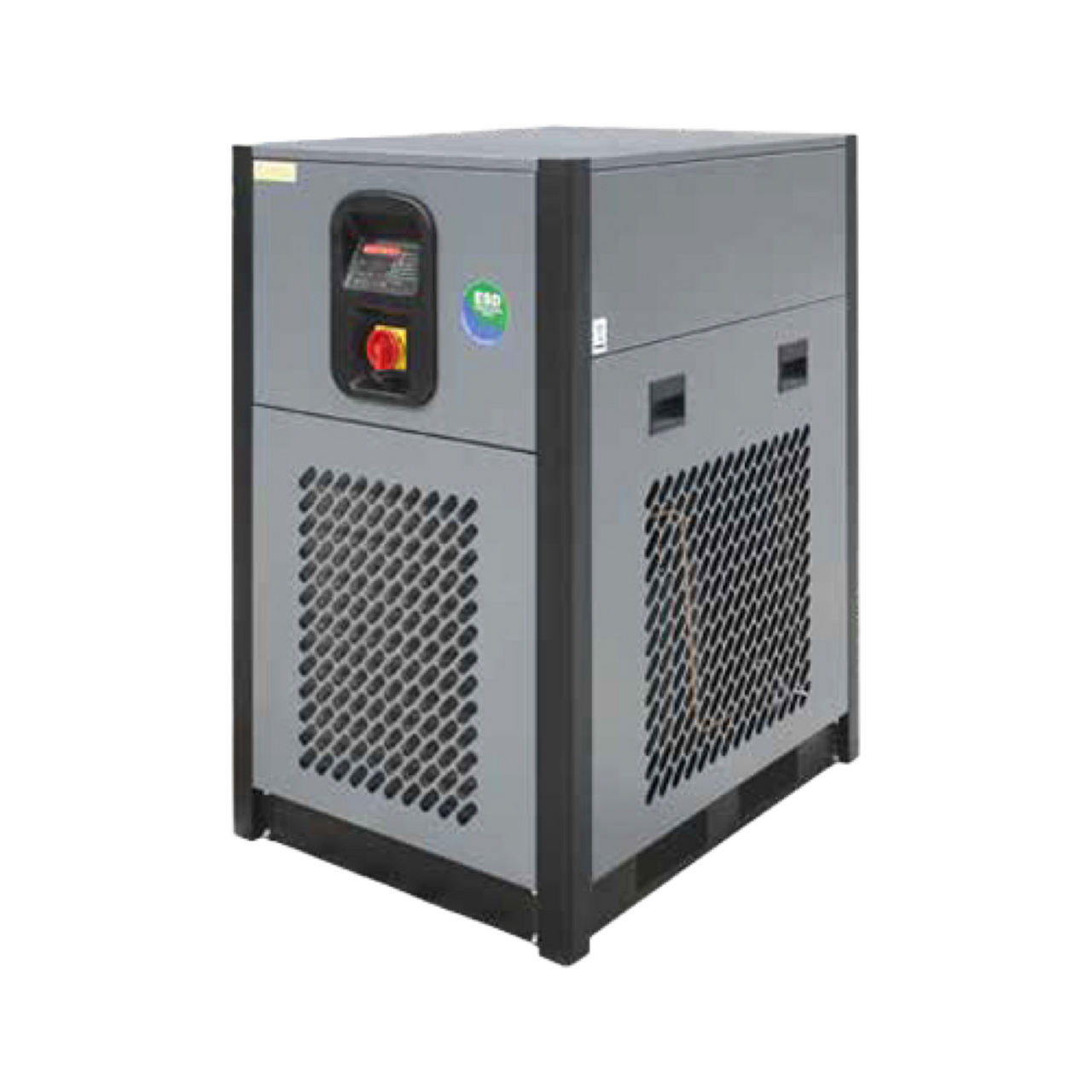

The Mikropor MK-HP high-pressure refrigerated air dryer, model MKHP-US-1000, part number MKHP-US-1000-575V, is the 575V AC version of this Mikropor dryer. It is listed in the ProParts Refrigerated Dryers category and is supplied new. ProParts, Inc. serves customers across Texas and Northern Mexico, and ProParts compressor technicians are available by phone for technical support.
Details
- Brand: Mikropor
- Series: MK-HP high-pressure refrigerated air dryer
- Model: MKHP-US-1000
- Part number / SKU: MKHP-US-1000-575V
- Electrical: AC 575V
- Condition: New
- Category: Refrigerated Dryers
- Ships from: San Juan, Texas
Part number cross-reference
MKHP-US-1000-575V, also listed as Mikropor MK-HP model MKHP-US-1000 AC 575V.
Product Videos
Custom Field
Product Line Mikropor MK-HP-US High-Pressure Refrigerated Air Dryer
Air Connection 2-1/2" Flange ANSI Class 600
Voltage 460V/3Ph/60Hz
Capacity (FAD) 1000 cfm
Dimensions (L x W x H) 46 x 31 x 59 in
Weight 1025 lbs
Type High-Pressure Refrigerated Dryer
Controller Digi-Pro
Pressure Drop < 3.6 psi
Nominal Working Pressure 580 psig
Max Working Pressure 650 psig
Max Inlet Temperature 120°F
Max Ambient Temperature 100°F
Refrigerant R-134a
Cooling Air-Cooled
