Product Description

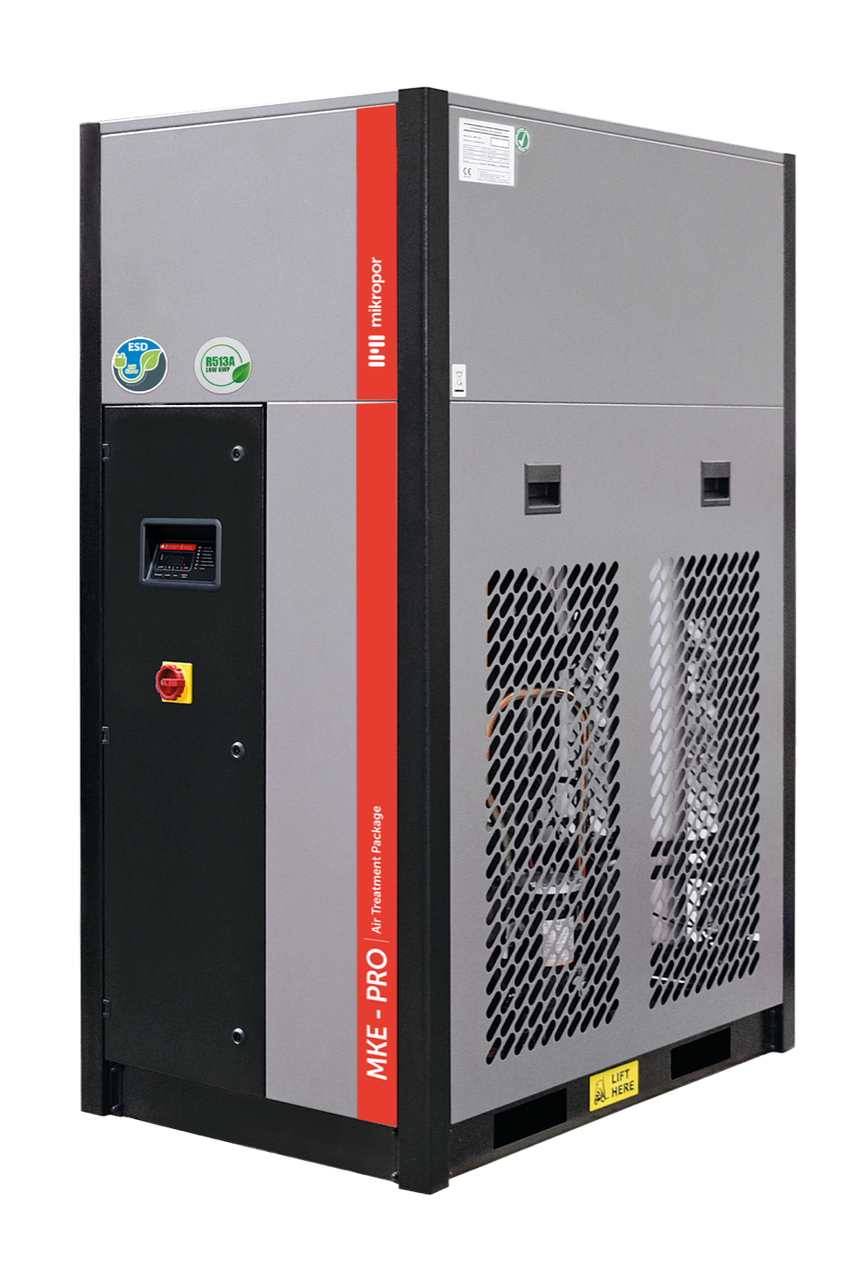

The Mikropor MK-US-PRO refrigerated air dryer, model MKUS-PRO-700 AC 575/3/60 (part number MKUS-PRO-700-575-3-60), is a non-cycling refrigerated dryer for compressed air systems. This unit is configured for 575 V, 3-phase, 60 Hz power. It is sold new by ProParts, Inc., an authorized ELGi and Bobcat air compressor dealer serving Texas and Northern Mexico.
Details
- Brand: Mikropor
- Series: MK-US-PRO refrigerated air dryer
- Model: MKUS-PRO-700 AC
- Part number / SKU: MKUS-PRO-700-575-3-60
- Electrical: 575/3/60
- Dryer type: Non-cycling refrigerated
- Condition: New
- Ships from: San Juan, Texas
Technical support is available by phone from ProParts compressor technicians.
Part number cross-reference
MKUS-PRO-700-575-3-60, MKUS-PRO-700 AC 575/3/60. Configuration code listed with this item: MK-PRO-150-NPT-ZL-ESD3575360AC7012GONMKR.
Product Videos
Custom Field
Product Line Mikropor MK-US-PRO Refrigerated Air Dryer
Air Connection 3" NPT
Capacity (FAD) 700 scfm
Voltage 575V/3Ph/60Hz
Replacement Filter Kit MKON-HC1805 KIT
Pressure Drop 2.2 psig
Controller ESD-3
Dimensions (L x W x H) 37 x 31 x 62 in
Type Refrigerated Cycling Dryer (Digital ECO)
Max Working Pressure 232 psig
Min Working Pressure 58 psig
Max Inlet Temperature 140°F
Max Ambient Temperature 122°F
Refrigerant R-513a
Cooling Air-Cooled
