Product Description

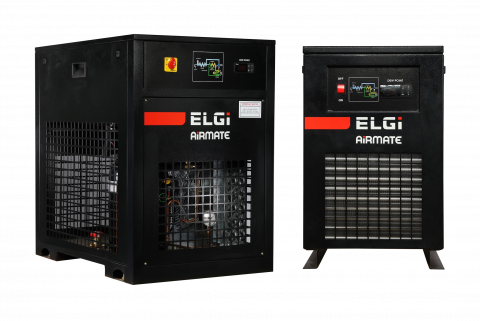

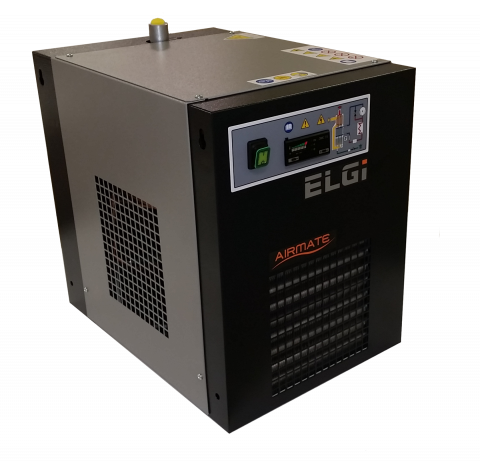

The ELGi EGRD 400, part number B000506530665, is a genuine ELGi 375 scfm refrigerated non-cycling dryer for 460V service. It belongs to the ELGi Global Refrigerated Dryer (EGRD) series, which is built for applications that require a constant dew point. ProParts, Inc. sells this unit as an authorized ELGi dealer serving Texas and Northern Mexico.
Details
- Brand: ELGi
- Model: EGRD 400
- Part number: B000506530665
- Type: Refrigerated non-cycling dryer
- Capacity: 375 scfm
- Voltage: 460V
- Dew point control: Hot gas bypass for constant dew point
- Refrigerant: The EGRD series uses ozone-friendly R-134a and R-407C refrigerants, which have zero ozone-depletion potential
- Series range: EGRD dryers are available up to 10,000 cfm as a standard product
- Condition: New
- Weight: 239 lb
- Ships from: McAllen, Texas
- Support: ProParts compressor technicians can provide technical support by phone
Part number cross-reference
ELGi B000506530665 (EGRD 400, 375 scfm, 460V)
Product Videos
Custom Field
Rated Flow 375 scfm
Rated Dew Point 38 F
Dryer Outlet 2" NPT
Drain Style Timer
Standard voltage 460 V / 3ph, 60 hz
Cooling Media Air
Max Pressure 203 psi
Length 24.61 in
Width 26.18 in
Height 43.5 in
Weight 239 lbs
