Product Description

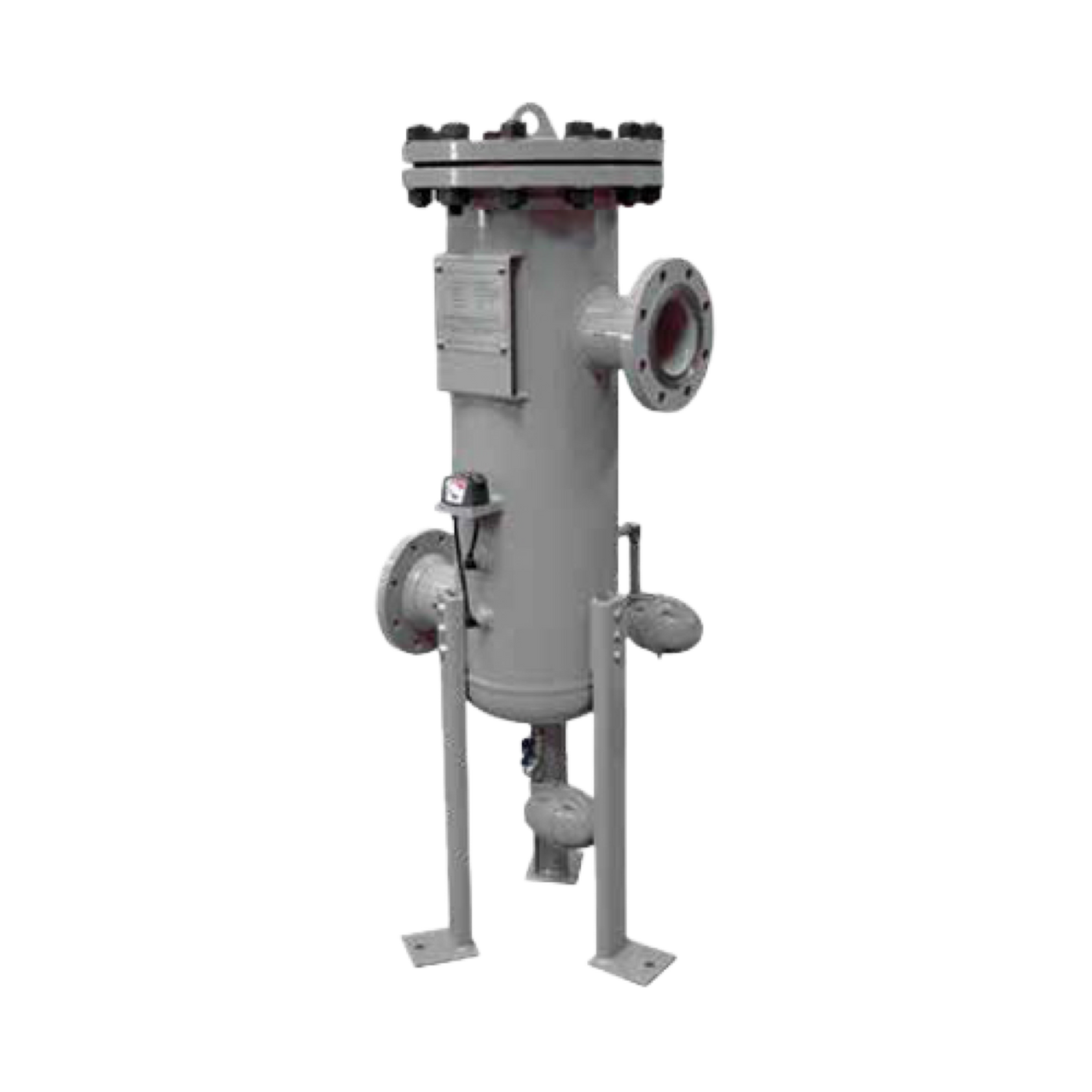

Mikropor ELM Series (150 scfm - 12,000 scfm)
Mist Eliminator Element
- Ultra low pressure drop reduces energy costs
- Positive gasket seals eliminate media bypass
- Filter change out differential 2.5 psi
- True Air/Oil Separator
- Long service life
Product Videos
Custom Field
Drain Port Size (NPT) 1/2"
Inlet/Outlet Port Size (NPT) 2"
Flow Rate (scfm) 600
Max Working Pressure (psi) 200
Housing Dimension A (inch) 19.7
Housing Dimension B (inch) 57.87
Housing Dimension C (inch) 8.34
Housing Dimension D (inch) 36.2
Housing Dimension oE (inch) 17
Housing Dimension oF (inch) 4
Housing Dimension G (inch) 30
Housing Dimension H (inch) 31
Product Line Mikropor ELM-US High-Efficiency Mist Eliminator
Capacity (FAD) 600 scfm
Air Connection 2" NPT
Dimensions (A-H) A19.7 B57.87 C8.34 D36.2 E17 F4 G30 H31 in
Type High-Efficiency Mist Eliminator Air Filter
Max Working Pressure 200 psi
Drain Port 1/2" NPT
