Product Description

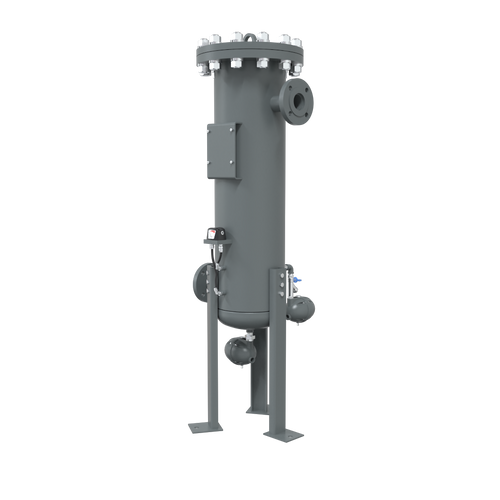

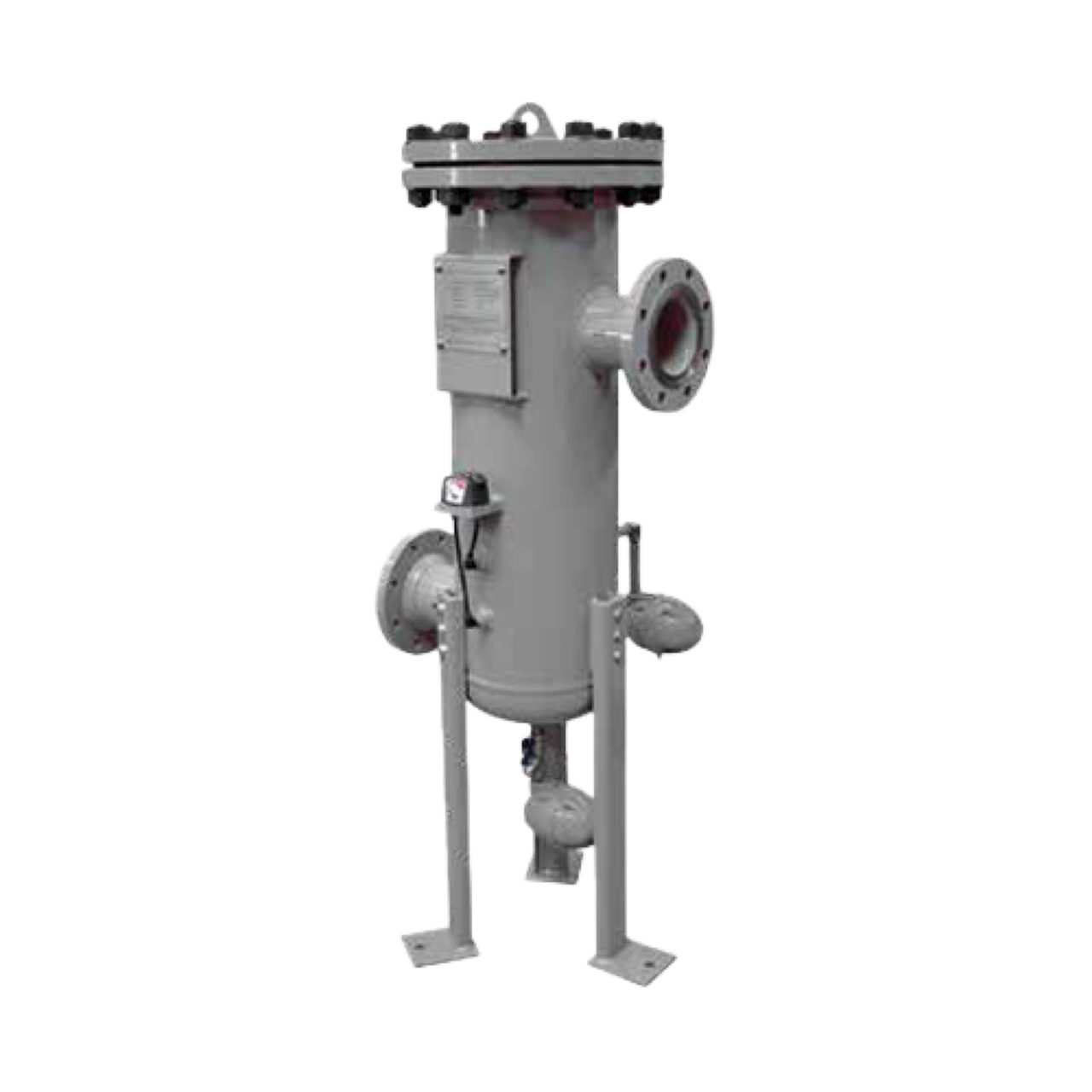

The Mikropor ELM-US-600 is a 600 scfm ELM Series high efficiency mist eliminator air filter. The ELM Series is built to capture oil fog, mist or smoke from exhaust and pressure unloading vents on oil flooded compressors, vacuum pumps and blowers, and for applications that need low delta P coalescing or large air volumes. Other listed applications include vacuum freeze drying, vacuum out-gassing and coating, food processing, nailers and staplers, industrial vacuum processes, and cement and paper processing.
Details
- Part number: ELM-US-600
- Brand: Mikropor, ELM Series
- Flow rating: 600 scfm
- Pressure rating: 200 psi
- Continuous temperature: 36°F min, 176°F max
- Removes particles down to 0.01 micron, including coalesced liquid water and oil, with a maximum remaining oil aerosol content of 0.01 ppm
- Very low pressure drop and easy field cleaning
- Auto float drain standard; multiple drain style options available
- Positive sealing O-rings; elements grounded to the canister to minimize static electricity problems
- Condition: New
- Weight: 25 lb
- Ships from McAllen, Texas; technical support available by phone from ProParts compressor technicians
Part number cross-reference
ELM-US-600 (store SKU ELM-US-600)
Product Videos
Custom Field
Drain Port Size (NPT) 1/2 in
Inlet/Outlet Port Size (NPT) 2 in
Flow Rate 600 scfm
Max Working Pressure 200 psi
Housing Dimension A 19.7 in
Housing Dimension B 57.87 in
Housing Dimension C 8.34 in
Housing Dimension D 36.2 in
Housing Dimension oE 17 in
Housing Dimension oF 4 in
Housing Dimension G 30 in
Housing Dimension H 31 in
Product Line Mikropor ELM-US High-Efficiency Mist Eliminator
Capacity (FAD) 600 scfm
Air Connection 2" NPT
Dimensions (A-H) A19.7 B57.87 C8.34 D36.2 E17 F4 G30 H31 in
Type High-Efficiency Mist Eliminator Air Filter
Drain Port 1/2" NPT
